Description

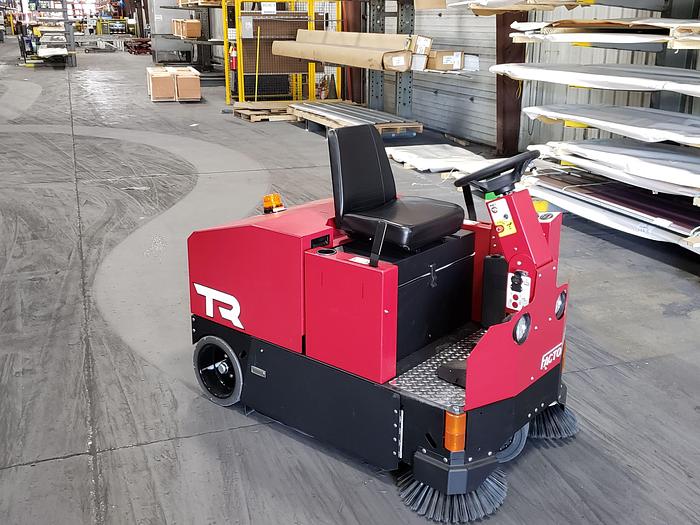

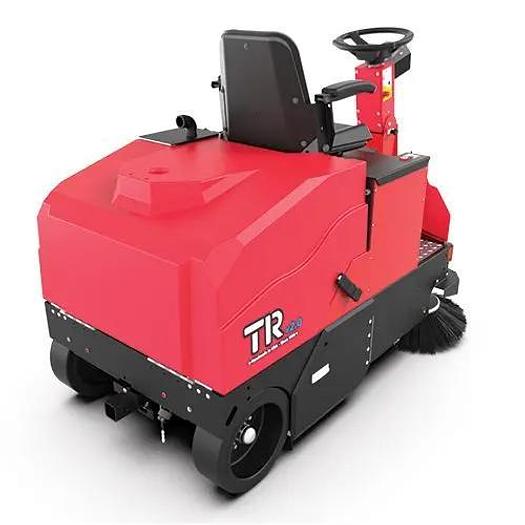

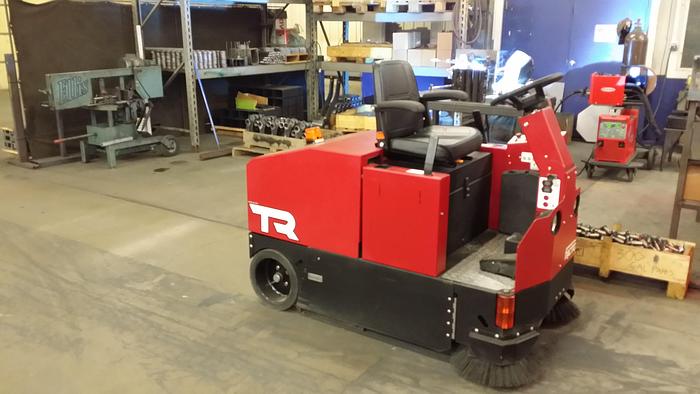

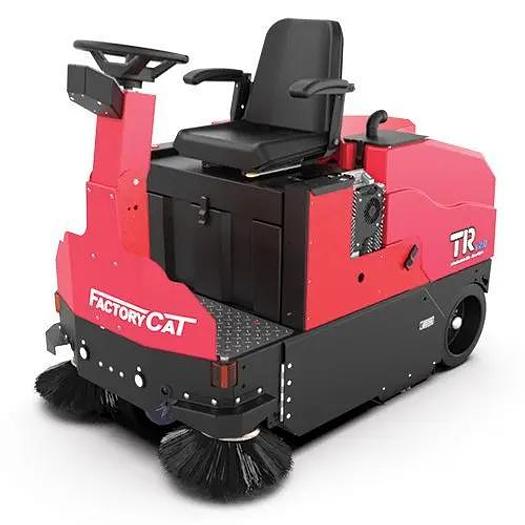

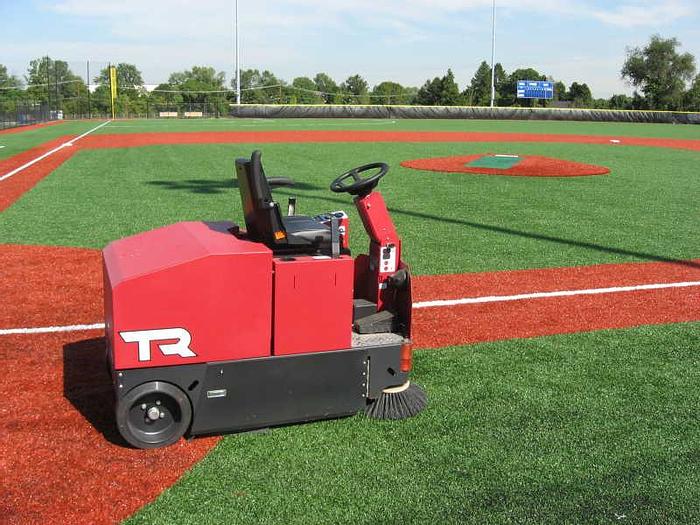

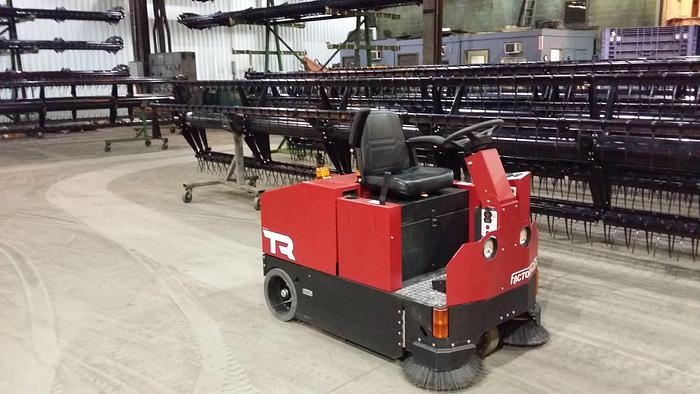

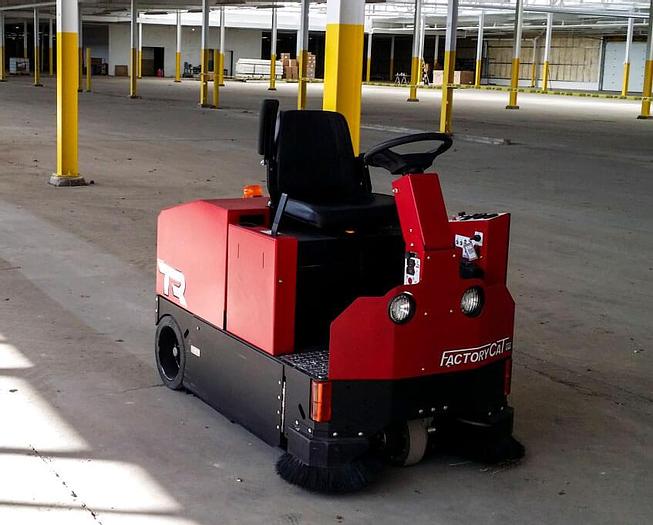

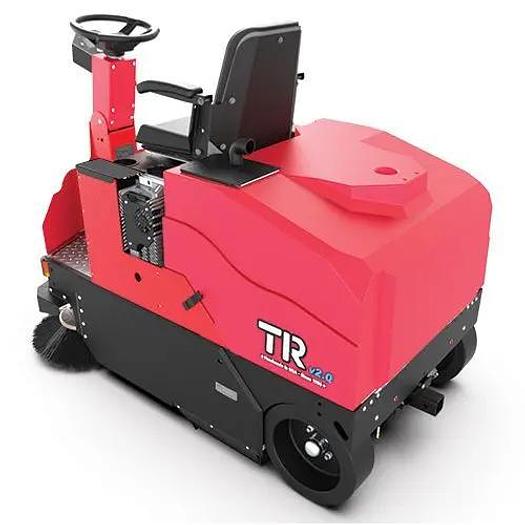

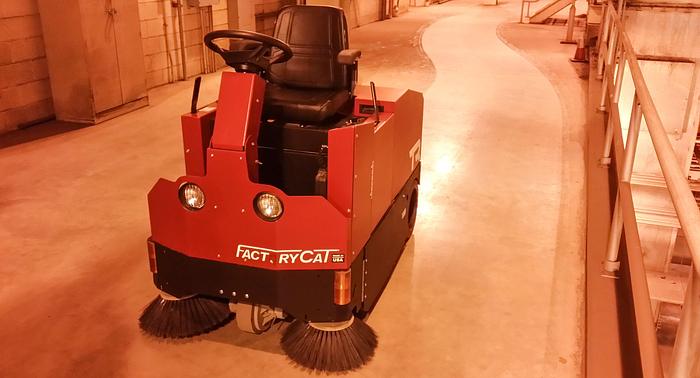

The Factory Cat TR is an all-steel rider sweeper with a 1-micron Baghouse dust filter and electric shaker, built for the heaviest industrial debris on a trailer-grade axle. Best for: large areas from about 50,000 to 150,000 sq ft: manufacturing plants, warehouses, distribution centers, and lots. Hard floors indoors and out: concrete, asphalt, sealed floors, and paved lots.
- 46” sweeping path from a 32” main broom and two 19” side brooms
- 4.2 cu ft aluminum and stainless slide-out hopper with floor roller
- Fully floating main broom with down pressure gauge
- 4 to 7 hours per charge, 60,000 sq ft/hr theoretical coverage
- 71 dB(A) and 1,140 lb
Standard build includes four 6 V / 240 Ah wet batteries (24 V system), an onboard 24 V / 27 A charger, and 1 hp brush and drive motors.
Specifications
| Type | Rider |
|---|---|
| Cleaning path | 46" |
| Hopper | 4.2 cu ft |
| Power | 24 V battery (240 Ah, wet) |
| Run time | 4–7 hr |
| Productivity | 60,000 sq ft/hr |
| Drive | Traction drive |
| Brush speed | 440 rpm |
| Weight | 1,140 lb |
| Sound | 71 dB(A) |

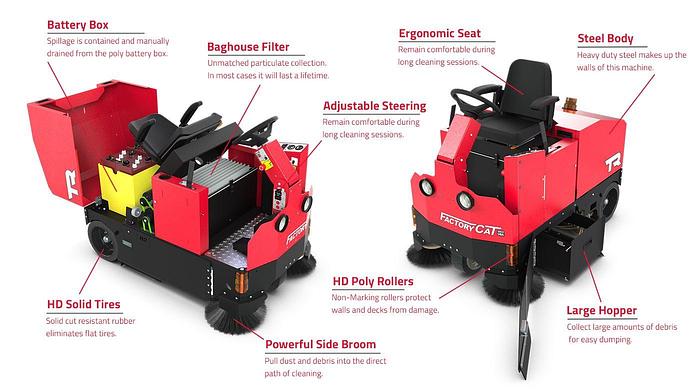

What's included
- Battery gauge / hour meter / down pressure gauge
- All steel construction + powder paint for corrosion resistance
- 32" x 11" main broom choice of fiber and (×2) side broom 19"
- Fully floating main broom suspension
- Long life 1 micron poly "Baghouse" dust filter with electric shaker
- (4) 6 V / 240 Ah wet batteries — 24 V system
- Onboard 24 V / 27 A charger
- 1.0 HP brush motor
- 0.2 HP (×2) side broom motors
- Front wheel drive-steer 10" with all metal gears 1.0 hp
- Solid front and rear tires and 5200 lb trailer axle

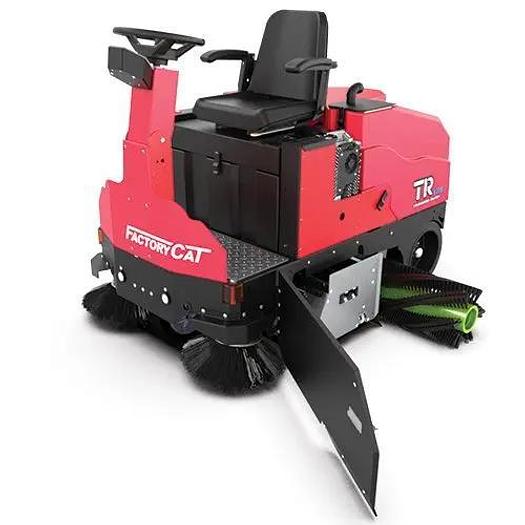

- Aluminum – stainless slide out hopper with floor roller and folding handle
- E-Stop, backup alarm, seat switch and operator controlled horn
- Operator and parts manuals
Available options
Controller
- Military Grade Controller
- Touch Screen Controller, 4" Display
Batteries — lead acid (wet)
- 310ah WET Battery Upgrade
- 420ah WET Battery Upgrade
Batteries — AGM (maintenance-free)
- 224ah AGM (4x) Battery Upgrade
- 312ah AGM Battery Upgrade
- 400ah AGM Battery Upgrade
Batteries — lithium
- 260ah Lithium Battery Package (Qty 4) + Onboard Charger 24V/37A (Requires Custom Program Charger + Controller)
Chargers
- Charger, Universal, On Board, AGM 24V/27A CEC
- Charger, Universal, Onboard, AGM 24V/37A, w/Inhibit, CE & CEC
- Onboard Charger Upgrade, 24V/37A
Single-point watering systems
- Single Point Watering System w/ Indicator Light
Cleaning, sanitizing and disinfecting
- Misting Wet Side Brooms
Wheels, tires and casters
- 12" Front Wheel Drive, 2HP, Black
- All Tire Swap, Grey Non Marking, w/10"Drive
- All Tire Swap, Grey Non-Marking w/12" Drive
Electrical
- Dual Headlights
- Strobe Light
- Blue Safety Light - Front & Rear Facing
- Strobe Light, Elevated Mount 36"
Other options
- Side Broom Speed Control
- Spec Ops Package
- Remote Wand with Vac
- Seat w/ Armrests
- Raised Floor Plate
- Seat Belt
- Dual Secondary Exhaust Filter
- Carpet Sweeping Package
- Steel Hopper w/ Hopper Split Boxes Set of 3
Filters
- Filter, 0.2 Micron
Heavy duty
- Stainless Steel Hopper
- Overhead Guard - 4 Post
- Mainframe Undercoating
Brooms
- Nylon, 32
- Carpet, 32
- Poly / Steel, 32
- Union, 32
- Union / Steel Mix, 32
Options are factory-installed at order time. Ask for a quote with the options you want.
Videos
Get a quote
Related equipment

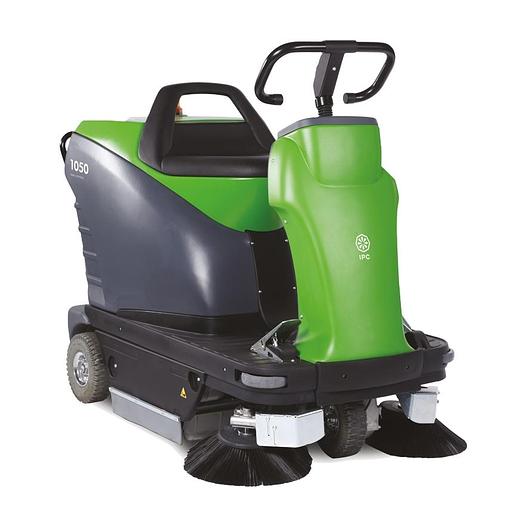

IPC Eagle 1050 Rider Floor Sweeper (Battery)
Get a quote

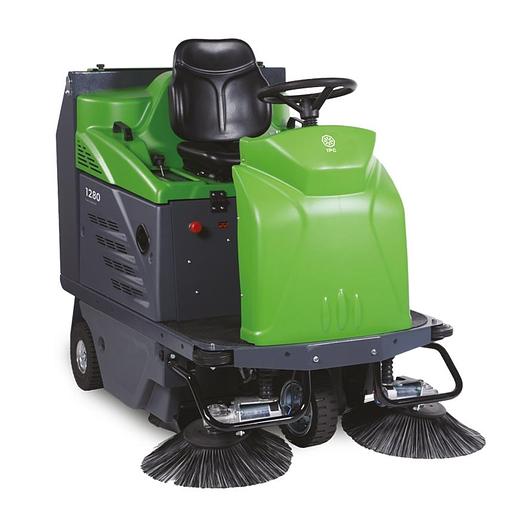

IPC Eagle 1280 Rider Floor Sweeper (Battery)
Get a quote

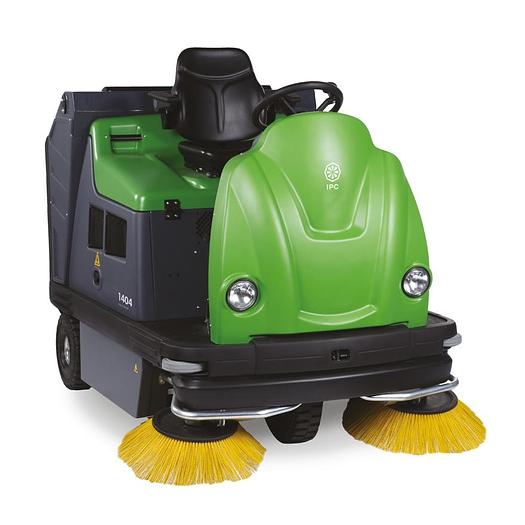

IPC Eagle 1404 Rider Floor Sweeper (Battery)
