Factory Cat GTR Rider Floor Scrubber (29" Cylindrical)

New · Factory Cat

Model GTR-29C · Stock 650V2-29FC

Get a quote Call (262) 333-0799

Factory Cat GTR Rider Floor Scrubber (29" Cylindrical)

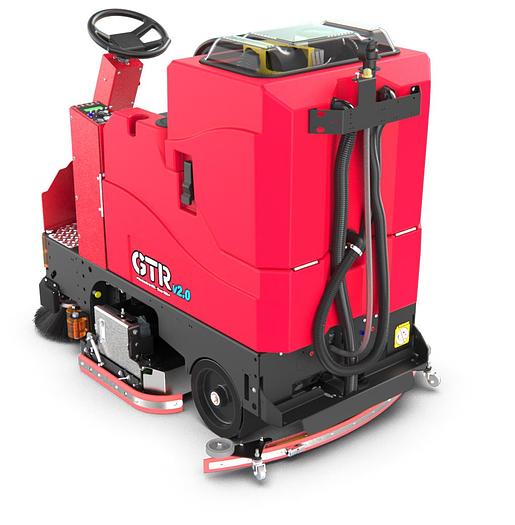

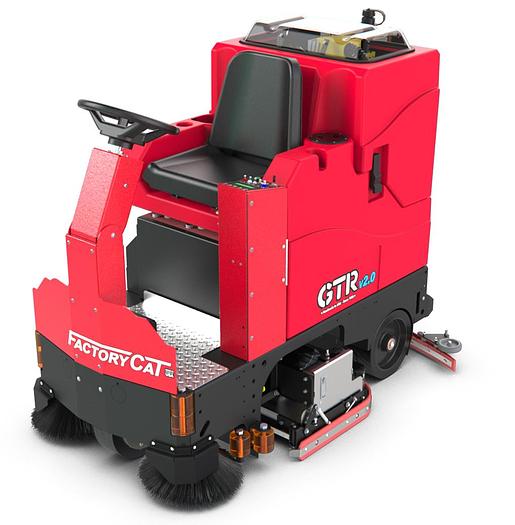

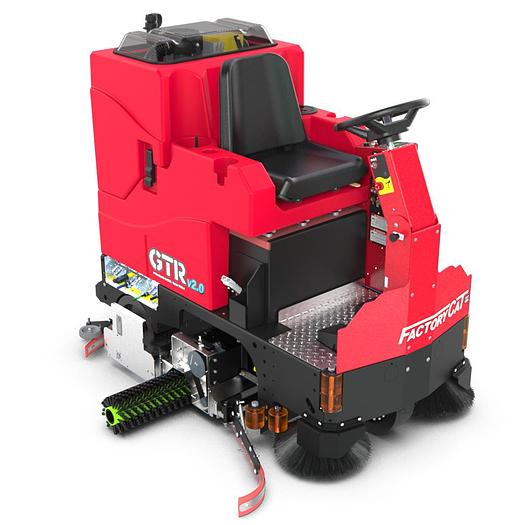

Factory Cat GTR Rider Floor Scrubber (29" Cylindrical) — photo 1 Factory Cat GTR Rider Floor Scrubber (29" Cylindrical) — photo 2 Factory Cat GTR Rider Floor Scrubber (29" Cylindrical) — photo 3 Factory Cat GTR Rider Floor Scrubber (29" Cylindrical) — photo 4 Factory Cat GTR Rider Floor Scrubber (29" Cylindrical) — photo 5

Description

The Factory Cat GTR is Factory Cat’s full-size rider, and this 29” cylindrical version carries dual 1.5 hp brushes that scrub textured floors and pick up light debris in one pass. Best for: large spaces from about 40,000 to 100,000 sq ft: industrial plants, warehouses, and distribution centers with grit and packaging debris on the floor. Textured and grouted hard floors, rough concrete, and epoxy.

  • 29” cylindrical deck, dual 1.5 hp at 650 rpm, up to 500 lb down pressure
  • Scrubs and picks up light debris in one pass, no pre-sweep
  • 46 gal solution / 49 gal recovery tanks, up to 5 hours per charge
  • 51,000 sq ft/hr theoretical coverage at 66 dB(A)

Standard build includes six 6 V / 310 Ah wet batteries (36 V system), an onboard 36 V / 25 A charger, and the patented service cabinet.

Specifications

TypeRider
Cleaning path29"
BrushCylindrical
Power36 V battery (310 Ah, wet)
Run timeup to 5 hr
Tanks (solution / recovery)46 / 49 gal
Productivity51,000 sq ft/hr
DriveTraction drive
Brush pressureup to 500 lb
Brush speed650 rpm
Sound66 dB(A)
What's included
  • Choice of controller and scrub brush
  • All steel 3/16" / 4.8 mm / 7 ga powder coated frame supports weight of machine
  • 46 gal / 174 L poly solution tank with "Site Tube" level gauge and integrated drain hose
  • 49 gal / 185 L poly recovery tank with 1.5" / 3.8 cm diameter drain hose with flow control
  • Cylindrical deck: Dual 1.5 HP motors / 650 RPM brush speed
  • Patented vacuum box for noise reduction and vacuum protection
  • Patented service cabinet
  • (6) 6 V / 310 Ah wet batteries — 36 V system
  • Onboard 36 V / 25 A charger
  • Drain Saver system
  • Stainless fasteners
  • 37" squeegee
Available options

Controller

  • Red Military Grade Controller
  • Black Legacy Trio LCD Controller
  • Touch Screen Controller, 4" Display

Batteries — lead acid (wet)

  • Battery Upgrade WET 360ah

Batteries — AGM (maintenance-free)

  • Battery Upgrade AGM 310ah

Batteries — lithium

  • 180ah Lithium Battery Package (Qty 4) + Onboard Charger 36V/33A(Requires Custom Program Charger + Controller)
  • 270ah Lithium Battery Package (Qty 6) + Onboard Charger 36V/33A(Requires Custom Program Charger + Controller)

Chargers

  • Charger, Universal, Onboard, AGM 36V/25A, w/Inhibit, CE & CEC

Battery and charger accessories

  • Single Point Watering System w/ Indicator Light Hand Pump

Tank configuration

  • Spec Ops Package

Cleaning, sanitizing and disinfecting

  • O3+ Package: Aqueous Ozone & Chemical Dilution
  • Suds Onboard Chemical Dilutionwith case of soap samples
  • ZerO3 Onboard Aqueous Ozone Package

Cleaning, sanitizing and disinfecting accessories

  • Rear Spray Bar w/ handheld Spray Gundrawn from Solution Tank
  • Blue Garden Hose w/ Spray Nozzle, 45PSI
  • Vacuum Wand
  • Off Aisle Vacuum Wand & Spray Jet - 45 psi/ 3gpm
  • Green High-Pressure Hose, Spray Gun w/3 Tips, 100PSI
  • Green Antimicrobial Tanks

Wheels, tires and casters

  • Rear Tire Swap, Solid Grey
  • P7,Front Drive Swap,Imperial Drive
  • Grey Front Drive Tire

Electrical

  • Blue Safety Light - Front & Rear Facing
  • Strobe Light - Amber
  • Freezer Package
  • Dual Headlights & Dual Rear Worklights
  • Dual Manager Lock Out - Solution & Pressure- Legacy Trio Only

Other options

  • Drain Hose Extension, 15' 1.5" Diameter Hose
  • Squeegee Hose with Coiled Trap at End
  • Seat Belt
  • Single Entry Apron
  • Raised Operator Floor Plate
  • Color Swap - Red to Granite

Side broom systems (factory installed)

  • Side Broom System w/ Broom Guards

Heavy duty

  • Overheard Guard
  • Mainframe Undercoating
  • Brass Cylindrical Idler & Driver Upgrade
  • Side Doors for 30" Disk & 29" Cylindrical

Squeegee size

  • 37" v2.1HD Squeegee - Standard on 30D & 29C
  • Fixed 33" v2.1 Squeegee - 30D & 29C

Brushes — 29" cylindrical

  • Nylon Cylindrical 29" 8-Lobe Green
  • Light-Grit Cylindrical 29" 8-Lobe Green
  • Midi-Grit Cylindrical 29" 8-Lobe Green
  • Tough-Grit Cylindrical 29" 8-Lobe Green
  • Tampico Cylindrical 29" 8-Lobe Green

Options are factory-installed at order time. Ask for a quote with the options you want.
