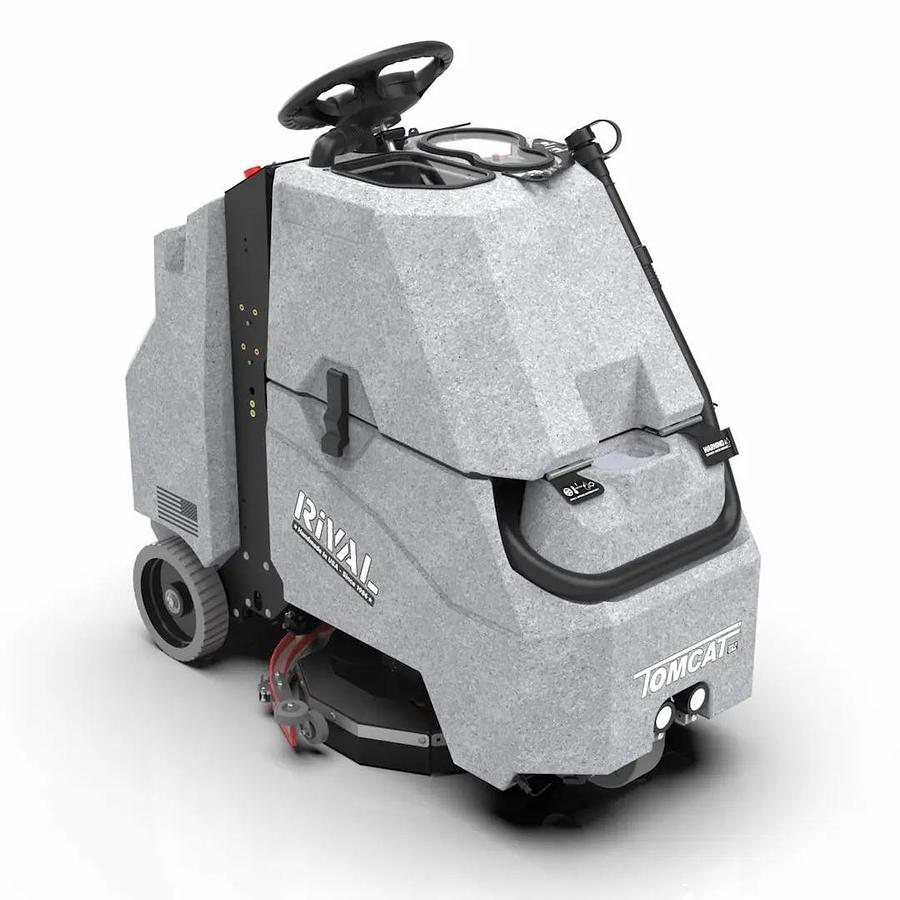

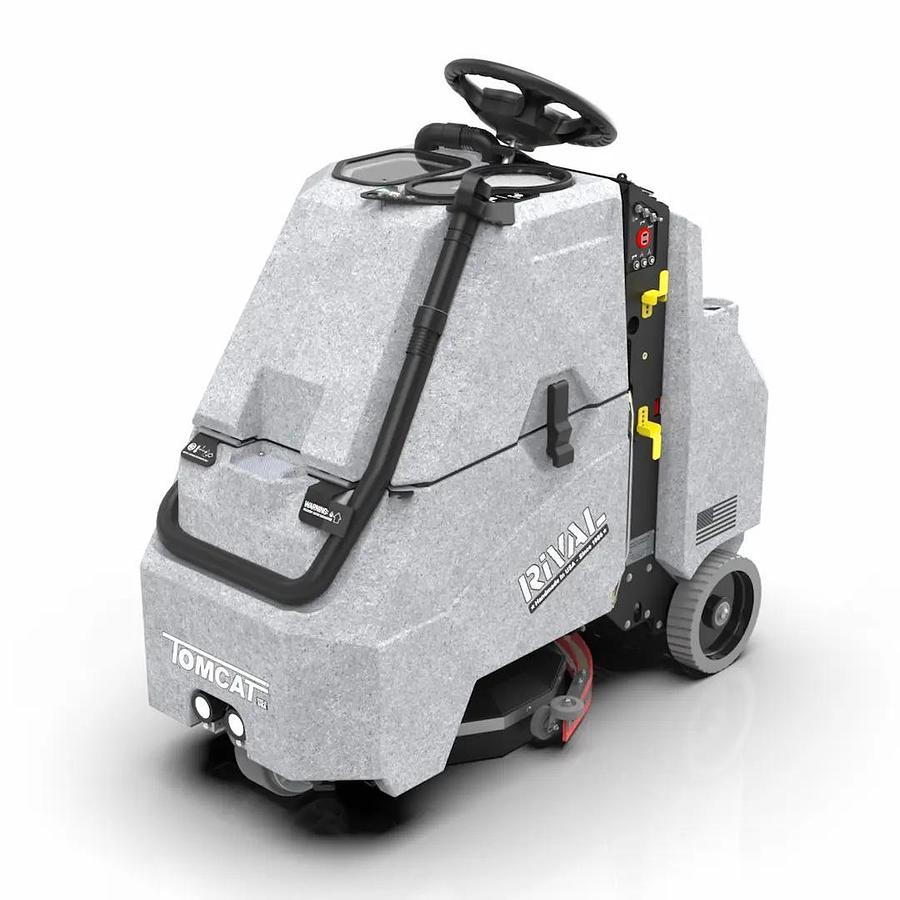

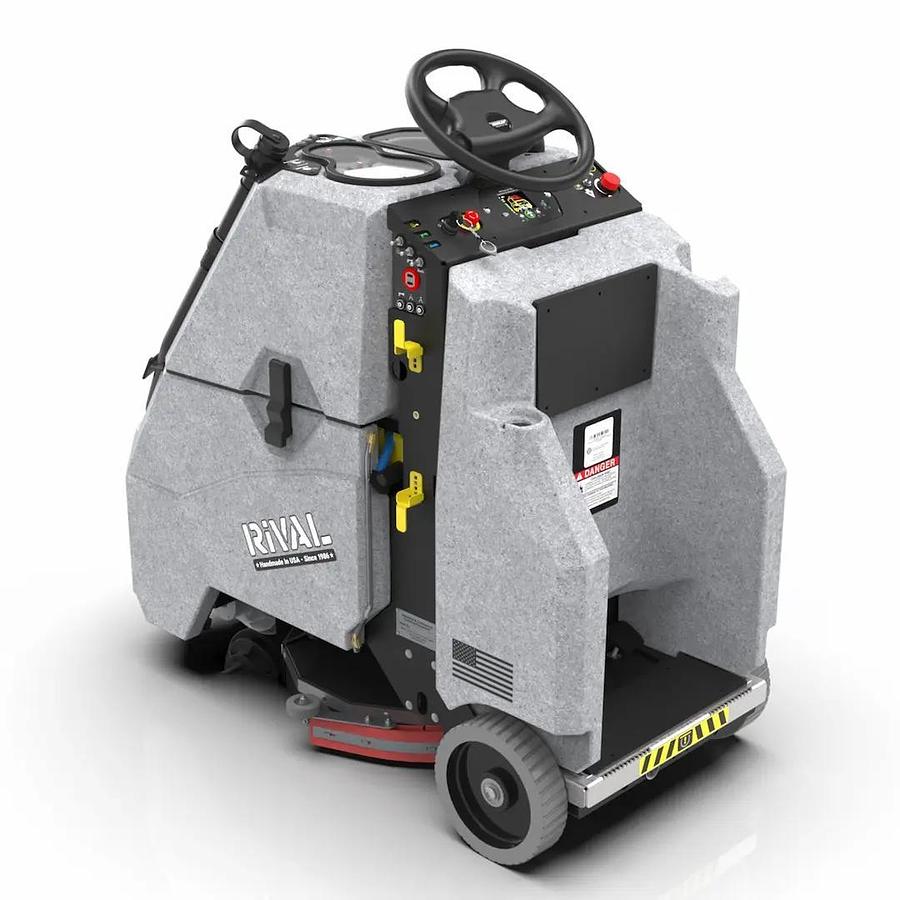

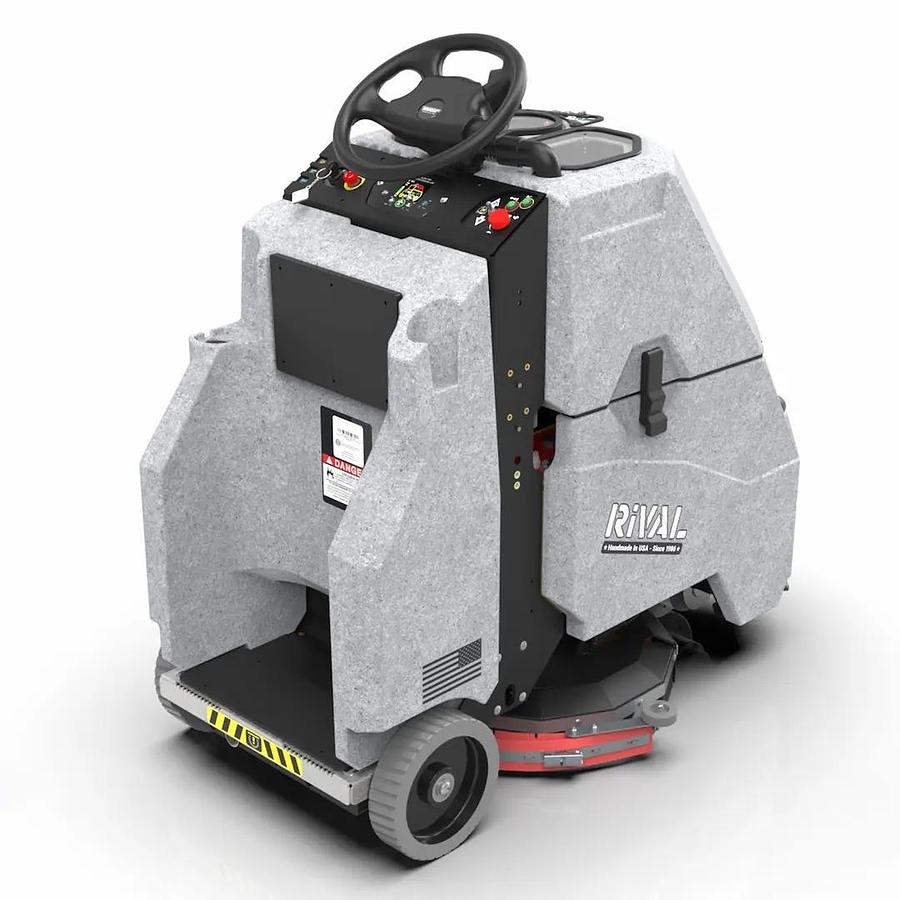

Tomcat Rival Stand-on (Chariot) Floor Scrubber (20" EDGE Orbital)
Model 220-20TE · Stock 220-20TE01
Description
The Tomcat Rival EDGE is the Rival stand-on scrubber with a 20” rectangular orbital pad in place of the disk, so it reaches into corners and along walls where a round brush can’t. Best for: warehouses, schools, retail and healthcare floors from about 10,000 to 40,000 sq ft, especially where aisles are tight or edges matter. Hard floors of every kind; strips finish chemical-free.
- 20” orbital deck, 1 hp motor at 2,000 rpm, up to 110 lb down pressure

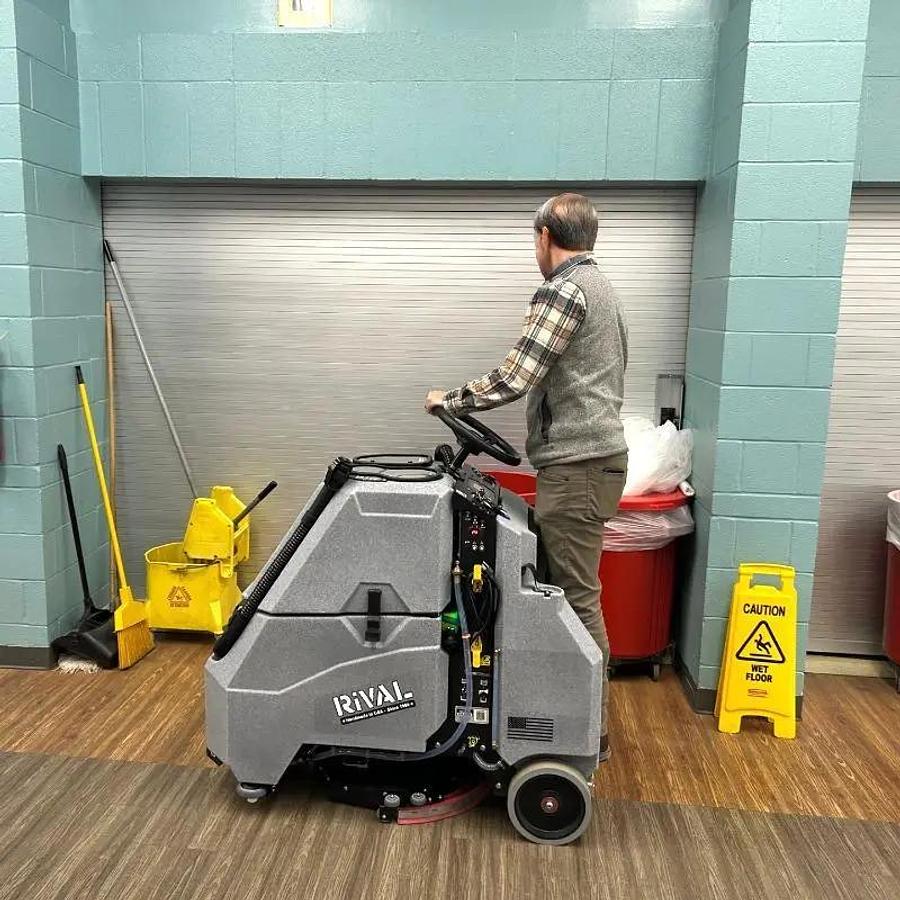

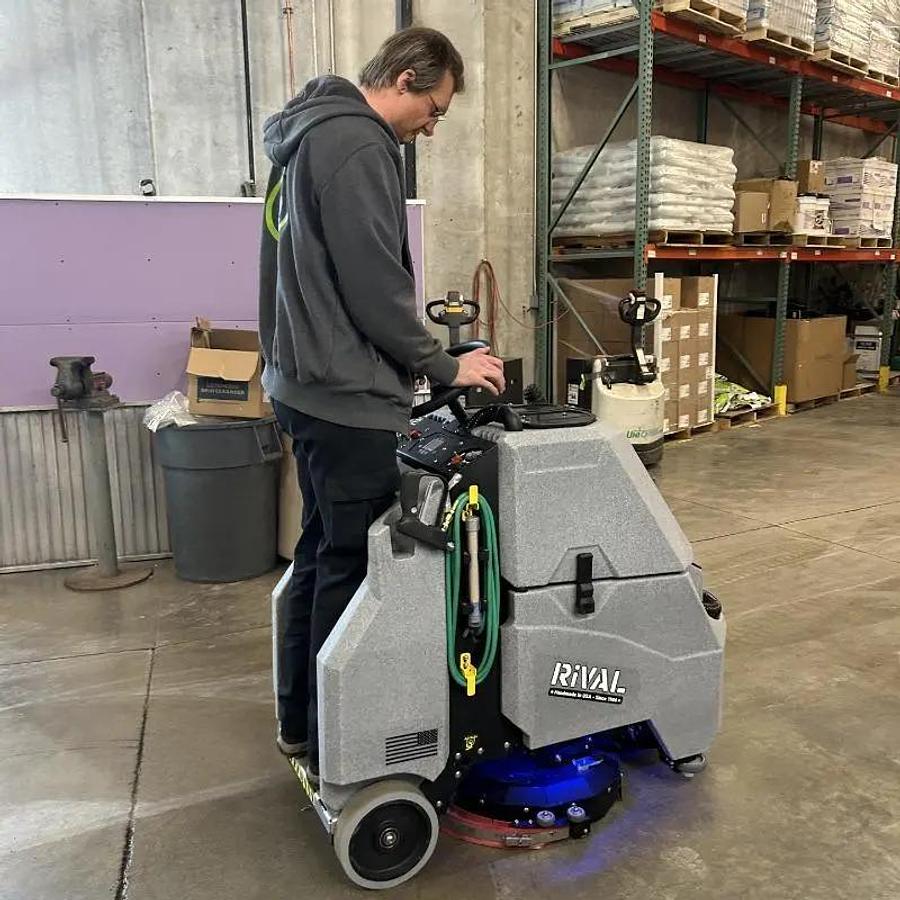

- Stand-on operation: ride-on speed, walk-behind control, full forward visibility
- 17 gal solution / 18 gal recovery tanks, up to 4 hours per charge
- Built in the USA by RPS; AGM and lithium battery options available
Standard build includes the membrane dash with 3” LCD, 24 V / 150 Ah wet batteries with onboard charger, steel frame, and stainless squeegee. Local on-site demonstrations available.
Specifications
| Type | Stand-on |
|---|---|
| Cleaning path | 20" |
| Brush | Orbital |
| Power | 24 V battery (150 Ah, wet) |
| Run time | up to 4 hr |
| Tanks (solution / recovery) | 17 / 18 gal |
| Productivity | 27,600 sq ft/hr |
| Drive | Traction drive |
| Brush pressure | up to 110 lb |
| Brush speed | 2,000 rpm |
| Weight | 472–622 lb |
What's included
- Membrane dash panel with 3" LCD screen
- 17 gal / 64 L poly solution tank with "Site Tube" level gauge
- 18 gal / 68 L poly recovery tank with drain hose
- (2) 12 V / 150 Ah wet batteries — 24 V system
- Onboard 24 V / 12 A charger
- E-Stop, backup alarm, operator controlled horn and operator presence foot plate
- Drain Saver basket
- Patented vacuum protection and muffler box with unloader
- Operator and parts manual
- 20" squeegee
Available options
Batteries and chargers — lithium
- 90ah Lithium Battery Package (1x) + Onboard Charger 24V/27A
- 180ah Lithium Battery Package (2x) + Onboard Charger 24V/27A
Batteries — lead acid (wet)
- 240ah WET Battery Upgrade (4x)
Batteries — AGM (maintenance-free)
- 224ah AGM (4x) Battery Upgrade
- 150ah AGM Battery Upgrade (2x)
Chargers
- Onboard Charger, AGM 24V/12A
- Onboard Charger Upgrade, WET 24V/27A
- Onboard Charger Upgrade, AGM 24V/27A
- Onboard Charger Upgrade, Lithium 24V/27A
Battery and charger accessories
- Single Point Watering System w/ Indicator Light
Cleaning, sanitizing and disinfecting
- Green High-Pressure Hose, Spray Gun w/ 3 Tips, 100 PSI w/ Dedicated 10 gal Tank
- ZerO3 Onboard Aqueous Ozone Package
- Blue Garden Hose w/ Spray Nozzle, 45 PSI w/ Dedicated 10 gal Tank
- Vacuum Wand
- Green Antimicrobial Solution & Recovery Tanks w/ Black Rear Tank
Wheels, tires and casters
- Black Rear Tires
Electrical
- Dual LED Headlights
- Low Solution / High Recovery Alert System
- Custom Controller Programming - Lithium Batteries
Other options
- Raised Operator Floor Pad
- Extended/Adjustable Operator Presence Plate
- Stainless-Steel Kit, Disk - Includes SS Deck & Squeegee
Options are factory-installed at order time. Ask for a quote with the options you want.
