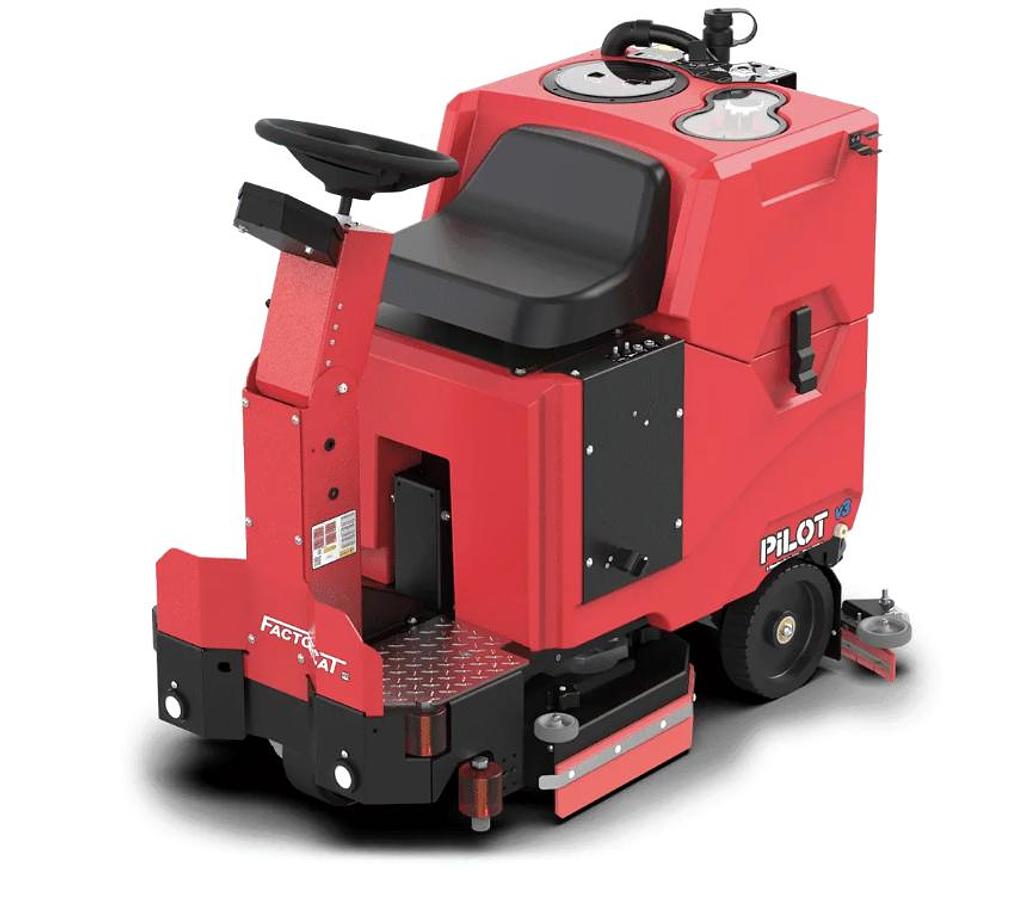

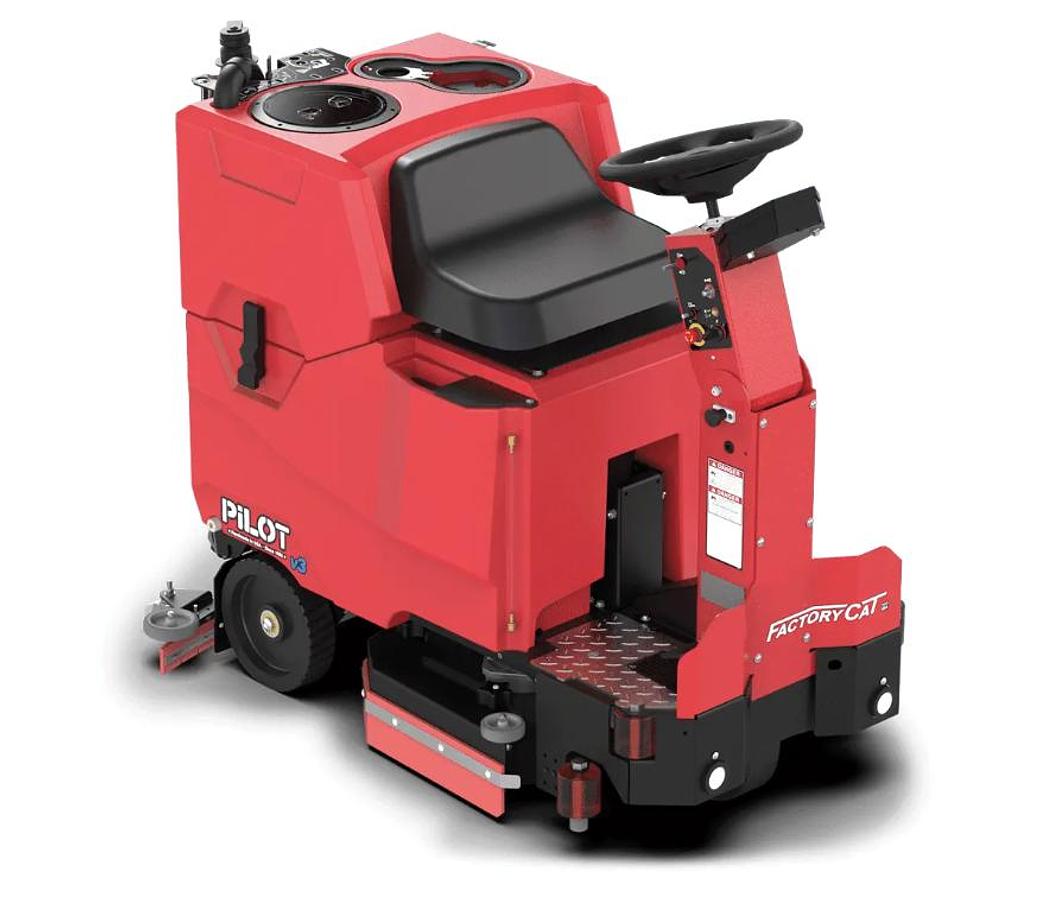

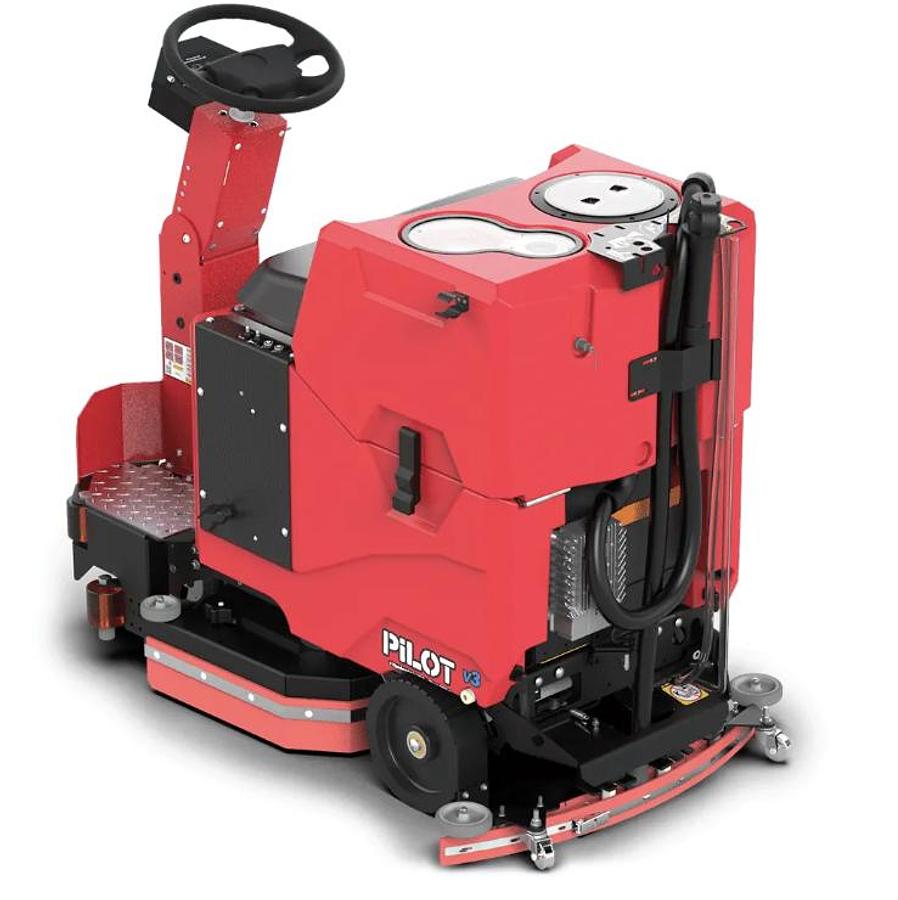

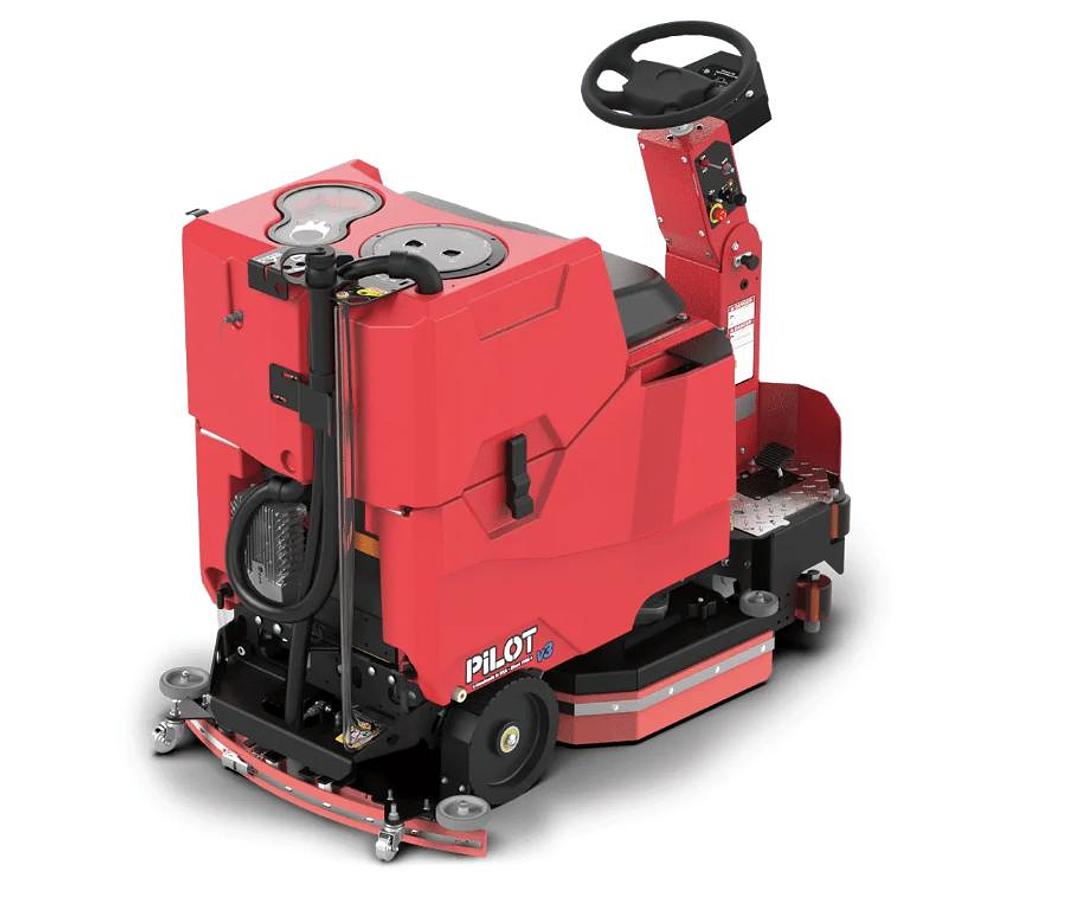

Factory Cat Pilot Rider Floor Scrubber V3 (24" Orbital)

New · Factory Cat

Model PLT-24FR · Stock 540V2-24FR

Get a quote Call (262) 333-0799

Description

The Factory Cat Pilot v3 is Factory Cat’s compact rider, and this 24” orbital version puts a rectangular orbital pad under a seated operator. Best for: mid-size spaces from about 15,000 to 50,000 sq ft: schools, hospitals, and clean facilities where stripper fumes are not an option. Smooth hard floors such as VCT, terrazzo, and sealed concrete.

  • 24” orbital deck, 1.5 hp, up to 150 lb down pressure
  • Chemical-free finish removal, no swirl marks
  • Front-wheel drive and steer, operator seated and facing forward
  • 22 gal solution / 23 gal recovery tanks, up to 3.5 hours per charge
  • 40,000 sq ft/hr theoretical coverage

Standard build includes three 12 V / 130 Ah wet batteries (36 V system), an onboard 36 V / 18 A charger, steel front and rear bumpers, and a curved squeegee with tool-less blade adjustment.

Specifications

TypeRider
Cleaning path24"
BrushOrbital
Power36 V battery (130 Ah, wet)
Run timeup to 3.5 hr
Tanks (solution / recovery)22 / 23 gal
Productivity40,000 sq ft/hr
DriveTraction drive
Brush pressureup to 150 lb
Brush speed2,500 rpm
Weight825–875 lb
What's included
  • Orbital deck: Blue pad – single 1.5 HP / 2700 RPM pad speed
  • All steel 3/16" / 4.7 mm / 7 ga powder coated frame supports weight of machine
  • Steel front and rear bumpers with tall poly roller standard
  • 22 gal / 83 L poly solution tank and 23 gal / 87 L poly recovery tank
  • (3) 12 V / 130 Ah wet batteries — 36 V system
  • Onboard 36 V / 18 A charger
  • Curved squeegee with tool-less blade adjustment
  • 3" color LCD deluxe controller 3 auto settings scrub pressure and water flow
  • 3 hour meters and detailed fault codes for troubleshooting
  • ECO mode for quiet operations and energy conservation
  • Front wheel drive-steer / black rear tires
  • 31" squeegee
Available options

Controller

  • 36v - 3” Color LCD Orio DES (70a)
  • Touch Screen Controller, 4" Display

Batteries — lead acid (wet)

  • Battery Upgrade 150ah WET (3x)

Batteries — AGM (maintenance-free)

  • Battery Upgrade 150ah AGM (3x)

Batteries — lithium

  • Battery Upgrade 80ah Lithium (1x)
  • Battery Upgrade 160ah Lithium (2x)
  • Battery Upgrade 240ah Lithium (3x)

Chargers

  • Onboard Charger, 36V/18A WET
  • Onboard Charger, 36V/18A AGM
  • Onboard Charger 36V/18A Lithium

Battery and charger accessories

  • Single Point Watering System w/ Indicator Light Hand Pump

Cleaning, sanitizing and disinfecting

  • Green High-Pressure Hose, Spray Gun w/3 Tips, 100PSI w/Dedicated 2 gal Tank
  • Blue Garden Hose w/ Spray Nozzle, 45PSI, Plumbed into Solution tank
  • Green High-Pressure Hose, Spray Gun w/3 Tips, 100PSI
  • ZerO3 Onboard Aqueous Ozone Package

Cleaning, sanitizing and disinfecting accessories

  • Vacuum Wand

Wheels, tires and casters

  • Rear Grey Non-Marking Tires

Electrical

  • Blue Safety Light - Front & Rear Facing
  • Strobe Light - Amber
  • Dual Headlights
  • Low Solution / High Recovery Alert System
  • HD Vac Motor
  • Blue Safety Light - Rear Facing Only

Other options

  • Mainframe Undercoating

Squeegee size

  • 31" Squeegee - Standard on 24R & 26D

Options are factory-installed at order time. Ask for a quote with the options you want.
