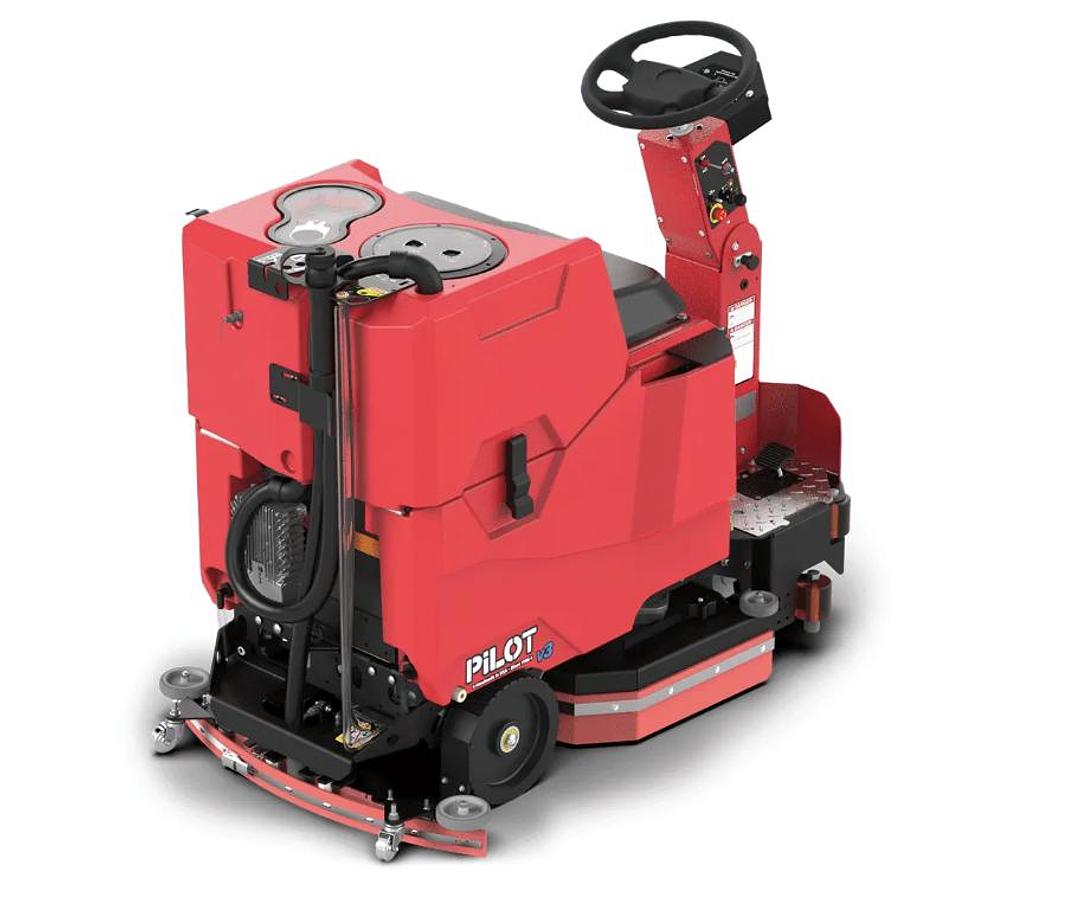

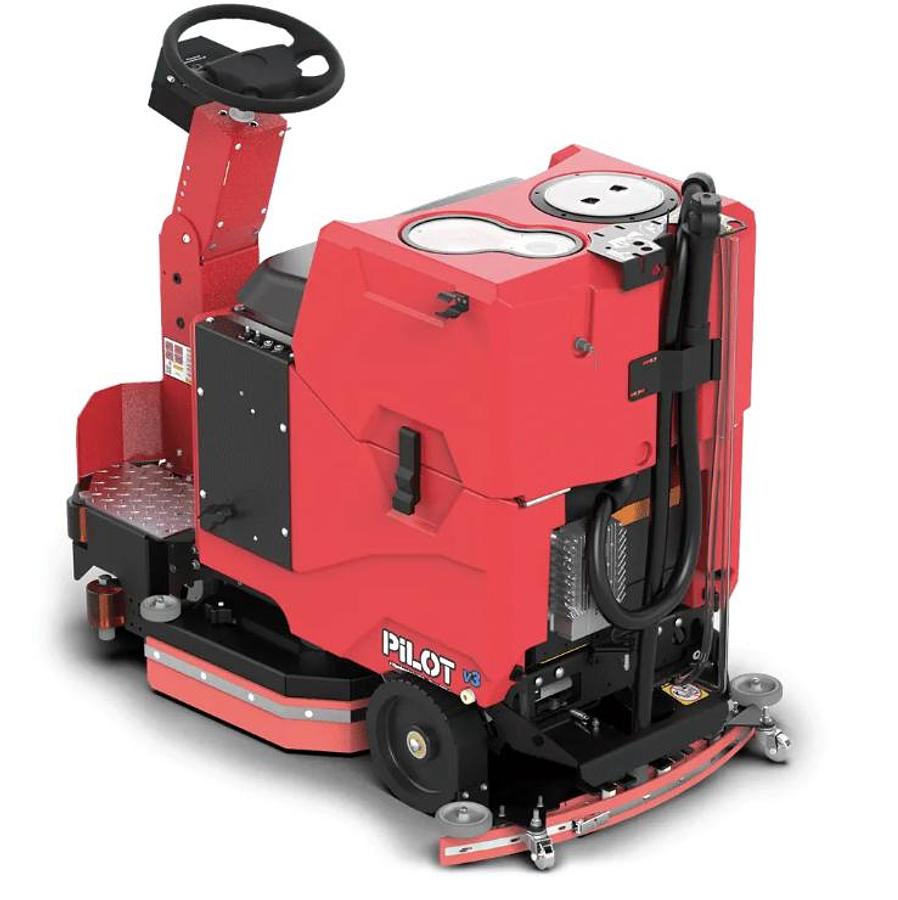

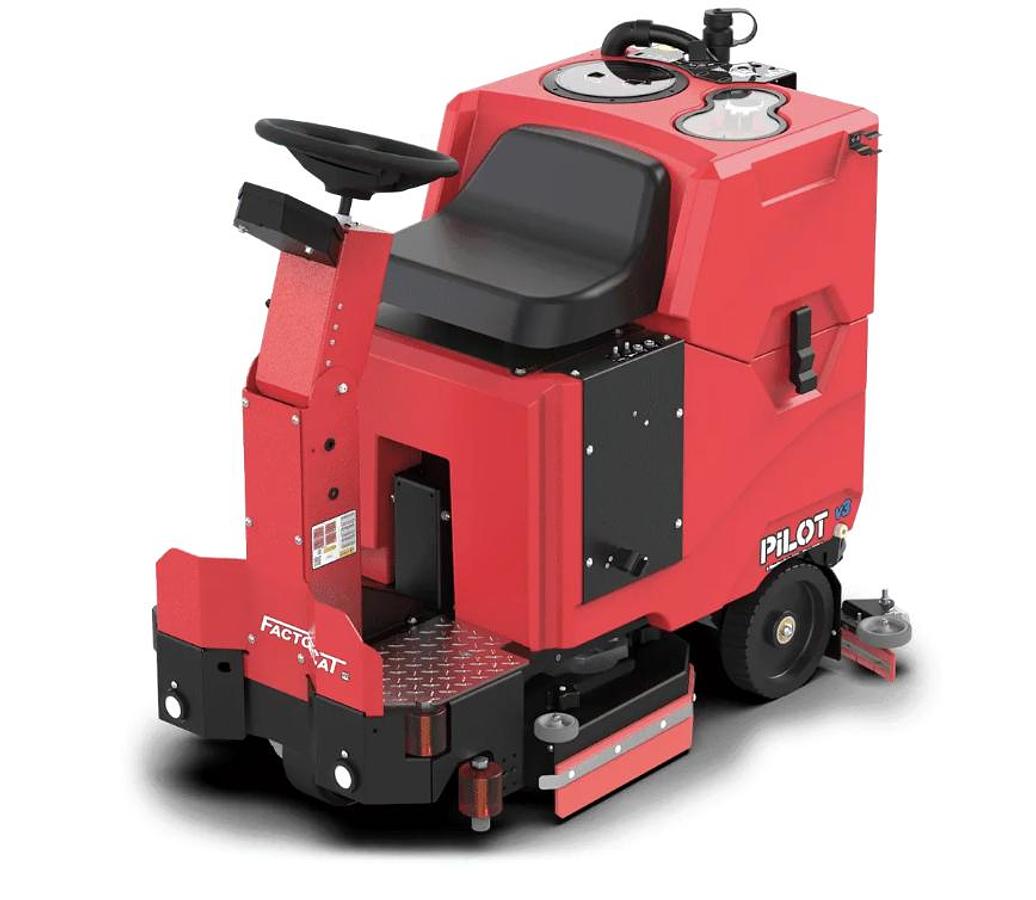

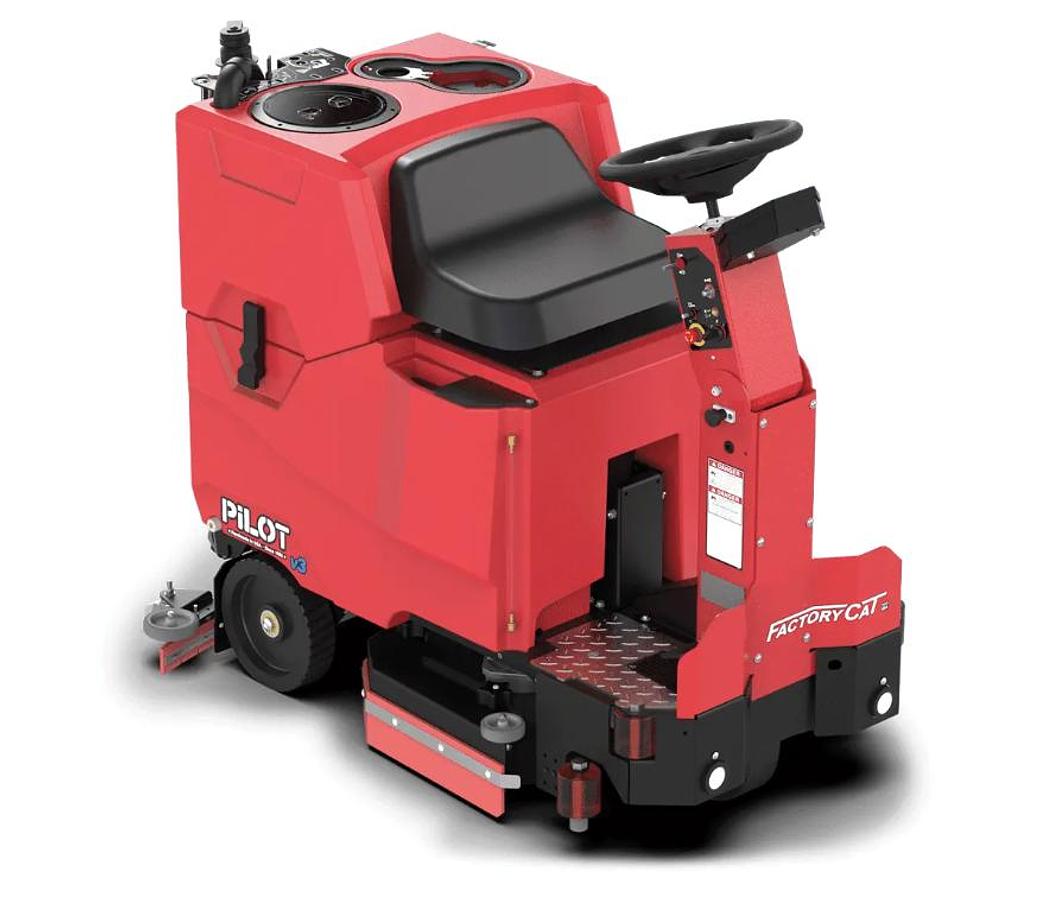

Factory Cat Pilot Rider Floor Scrubber V3 (28" Orbital)
Model PLT-28FR · Stock 540V2-28FR
Description
The Factory Cat Pilot v3 28” orbital is the widest orbital pad on Factory Cat’s compact rider, the fastest chemical-free finish removal you can get through a standard doorway. Best for: mid-size to large spaces from about 15,000 to 50,000 sq ft: schools, hospitals, and clean facilities where air quality rules out stripper. Smooth hard floors such as VCT, terrazzo, and sealed concrete.
- 28” orbital deck, 1.5 hp, up to 150 lb down pressure
- Chemical-free finish removal, no swirl marks
- Front-wheel drive and steer, operator seated and facing forward
- 22 gal solution / 23 gal recovery tanks, up to 3.5 hours per charge
- 40,000 sq ft/hr theoretical coverage
Standard build includes three 12 V / 130 Ah wet batteries (36 V system), an onboard 36 V / 18 A charger, steel front and rear bumpers, and a curved squeegee with tool-less blade adjustment.
Specifications
| Type | Rider |
|---|---|
| Cleaning path | 28" |
| Brush | Orbital |
| Power | 36 V battery (130 Ah, wet) |
| Run time | up to 3.5 hr |
| Tanks (solution / recovery) | 22 / 23 gal |
| Productivity | 40,000 sq ft/hr |
| Drive | Traction drive |
| Brush pressure | up to 150 lb |
| Brush speed | 2,500 rpm |
| Weight | 825–875 lb |
What's included
- Orbital deck: Blue pad – single 1.5 HP / 2700 RPM pad speed
- All steel 3/16" / 4.7 mm / 7 ga powder coated frame supports weight of machine
- Steel front and rear bumpers with tall poly roller standard
- 22 gal / 83 L poly solution tank and 23 gal / 87 L poly recovery tank
- (3) 12 V / 130 Ah wet batteries — 36 V system
- Onboard 36 V / 18 A charger
- Curved squeegee with tool-less blade adjustment
- 3" color LCD deluxe controller 3 auto settings scrub pressure and water flow
- 3 hour meters and detailed fault codes for troubleshooting
- ECO mode for quiet operations and energy conservation
- Front wheel drive-steer / black rear tires
- 33" squeegee
Available options
Controller
- 36v - 3” Color LCD Orio DES (70a)
- Touch Screen Controller, 4" Display
Batteries — lead acid (wet)
- Battery Upgrade 150ah WET (3x)
Batteries — AGM (maintenance-free)
- Battery Upgrade 150ah AGM (3x)
Batteries — lithium
- Battery Upgrade 80ah Lithium (1x)
- Battery Upgrade 160ah Lithium (2x)
- Battery Upgrade 240ah Lithium (3x)
Chargers
- Onboard Charger, 36V/18A WET
- Onboard Charger, 36V/18A AGM
- Onboard Charger 36V/18A Lithium
Battery and charger accessories
- Single Point Watering System w/ Indicator Light Hand Pump
Cleaning, sanitizing and disinfecting
- Green High-Pressure Hose, Spray Gun w/3 Tips, 100PSI w/Dedicated 2 gal Tank
- Blue Garden Hose w/ Spray Nozzle, 45PSI, Plumbed into Solution tank
- Green High-Pressure Hose, Spray Gun w/3 Tips, 100PSI
- ZerO3 Onboard Aqueous Ozone Package
Cleaning, sanitizing and disinfecting accessories
- Vacuum Wand
Wheels, tires and casters
- Rear Grey Non-Marking Tires
Electrical
- Blue Safety Light - Front & Rear Facing
- Strobe Light - Amber
- Dual Headlights
- Low Solution / High Recovery Alert System
- HD Vac Motor
- Blue Safety Light - Rear Facing Only
Other options
- Mainframe Undercoating
Squeegee size
- 33" Squeegee - Standard on 28R
Options are factory-installed at order time. Ask for a quote with the options you want.
