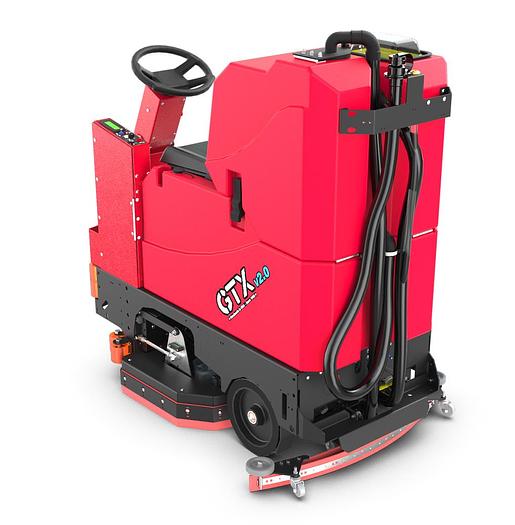

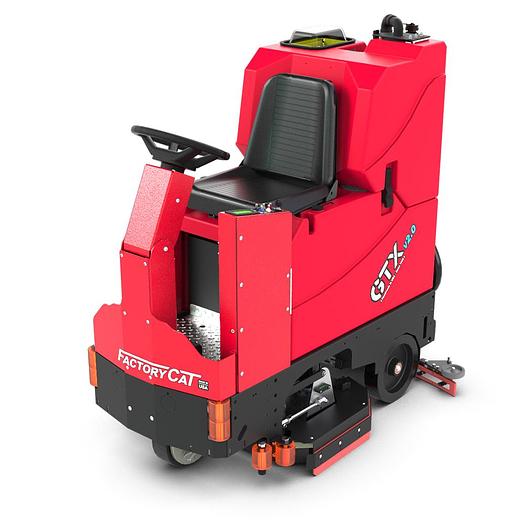

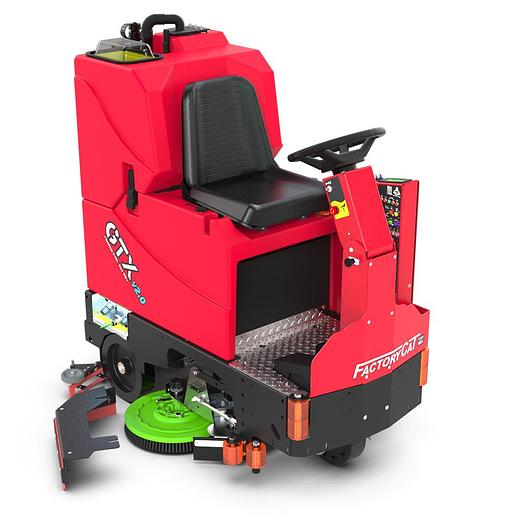

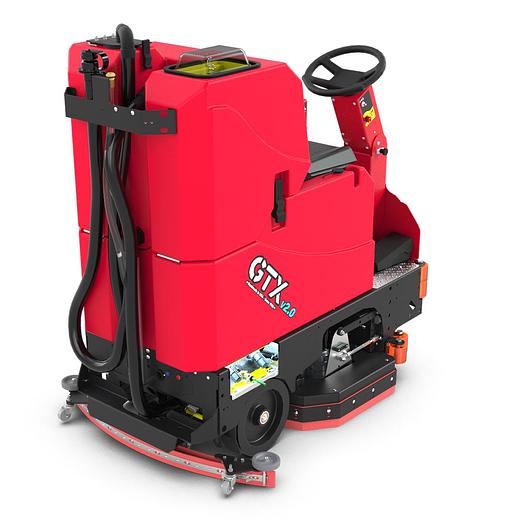

Factory Cat GTX Rider Floor Scrubber (28" Disk)
Model GTX-28D · Stock 600V2-28FD
Description
The Factory Cat GTX 28” disk is a mid-width dual-disk deck on Factory Cat’s mid-size rider, the general-purpose choice in the GTX line. Best for: large spaces from about 30,000 to 80,000 sq ft: warehouses, manufacturing plants, schools, and distribution centers with long open runs. Smooth hard floors such as VCT, tile, terrazzo, and sealed concrete.
- 28” dual-disk deck, two 0.75 hp motors at 270 rpm, up to 200 lb down pressure
- Front-wheel traction drive, operator seated and facing forward
- 33 gal solution / 36 gal recovery tanks, up to 6 hours per charge
- 47,000 sq ft/hr theoretical coverage, 825 to 875 lb operating weight
Standard build includes six 6 V / 210 Ah wet batteries (36 V system), an onboard 36 V / 25 A charger, and the patented service cabinet.

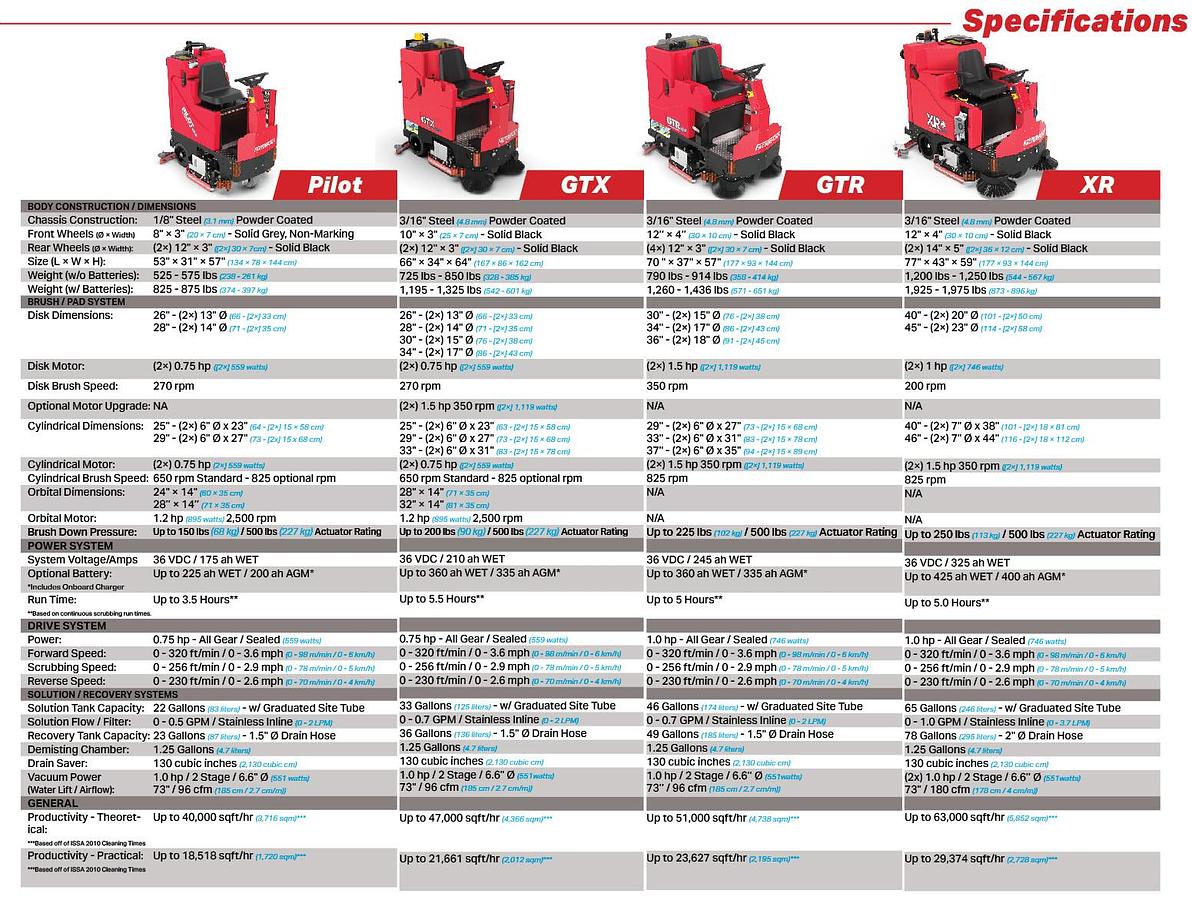

Specifications
| Type | Rider |
|---|---|
| Cleaning path | 28" |
| Brush | Disk |
| Power | 36 V battery (210 Ah, wet) |
| Run time | up to 6 hr |
| Tanks (solution / recovery) | 33 / 36 gal |
| Productivity | 47,000 sq ft/hr |
| Drive | Traction drive |
| Brush pressure | up to 200 lb |
| Brush speed | 270 rpm |
| Weight | 825–875 lb |
What's included
- Choice of controller and scrub brush
- All steel 1/8" and 3/16" / 3.1 and 4.8 mm / 7 ga powder coated frame supports weight of machine
- 33 gal / 125 L poly solution tank with "Site Tube" level gauge and integrated drain hose
- 36 gal / 136 L poly recovery tank with 1.5" / 3.8 cm diameter drain hose with flow control
- Disk deck: Dual 0.75 HP / 270 RPM motors
- Patented vacuum box for noise reduction and vacuum protection
- Patented service cabinet
- (6) 6 V / 210 Ah wet batteries — 36 V system
- Onboard 36 V / 25 A charger
- Drain Saver system
- Stainless fasteners
- 37" squeegee
Available options
Controller
- Red Military Grade Controller
- Black Legacy Trio LCD Controller
- Touch Screen Controller, 4" Display
Batteries — lead acid (wet)
- Battery Upgrade WET 240ah
- Battery Upgrade WET 310ah
- Battery Upgrade WET 360ah
Batteries — AGM (maintenance-free)
- Battery Upgrade 224ah AGM
- Battery Upgrade AGM 335ah
Batteries — lithium
- 180ah Lithium Battery Package (Qty 4) + Onboard Charger 36V/33A(Requires Custom Program Charger + Controller)
- 270ah Lithium Battery Package (Qty 6) + Onboard Charger 36V/33A(Requires Custom Program Charger + Controller)
Chargers
- Charger Upgrade, Onboard, WET, 36V/33A
- Charger Upgrade, Onboard, AGM, 36V/33A
Battery and charger accessories
- Single Point Watering System w/ Indicator Light Hand Pump
Tank configuration
- Spec Ops Package
Cleaning, sanitizing and disinfecting
- O3+ Package: Aqueous Ozone & Chemical Dilution
- Suds Onboard Chemical Dilutionwith case of soap samples
- ZerO3 Onboard Aqueous Ozone Package
Cleaning, sanitizing and disinfecting accessories
- Rear Spray Bar w/ handheld Spray Gundrawn from Solution Tank
- Blue Garden Hose w/ Spray Nozzle, 45PSI
- Vacuum Wand
- Off Aisle Vacuum Wand & Spray Jet - 45 psi/ 3gpm
- Green High-Pressure Hose, Spray Gun w/3 Tips, 100PSI
- Tanks,Green,Antimicrobial
Wheels, tires and casters
- All Tires Swap, Solid Grey Non-Marking
- P7,Front Drive Swap,Imperial Drive
Electrical
- Blue Safety Light - Front & Rear Facing
- Strobe Light - Amber
- Dual Headlights & Dual Rear Worklights
- Freezer Package
- Low Solution / High Recovery Alert System
- Dual Manager Lock Out - Solution & Pressure- Legacy Trio Only
Other options
- Drain Hose Extension, 15' 1.5" Diameter Hose
- Squeegee Hose with Coiled Trap at End
- Seat Belt
- Raised Operator Floor Plate
- Color Swap - Red to Granite
Side broom systems (factory installed)
- Side Broom System w/ Broom Guards
Heavy duty
- Side Doors for 26" Disk, 28" Disk,25" Cylindrical & 24" Orbital
- Mainframe Undercoating
- Brass Cylindrical Idler & Driver Upgrade
- Overhead Guard
- Metal Recovery Lid
Hopper
- Hopper Screen
Squeegee size
- 37" v2.1HD Squeegee - Standard on 28D, 30D, 29C & 28R
Brushes — 28" disk
- Set of 2 - 14" Pad Driver 8-Lobe Green
- Set of 2 - 14" Nylon 8-Lobe Green
- Set of 2 - 14" Poly 8-Lobe Green
- Set of 2 - 14" Light-Grit 8-Lobe Green
- Set of 2 - 14" Mid-Grit 8-Lobe Green
- Set of 2 - 14" Tough-Grit 8-Lobe Green
- Set of 2 - 14" Super-Grit 8-Lobe Green
- Set of 2 - 14" Tampico 8-Lobe Green
- Set of 2 - 14" Diamond Drivers 8-Lobe Green
Options are factory-installed at order time. Ask for a quote with the options you want.
