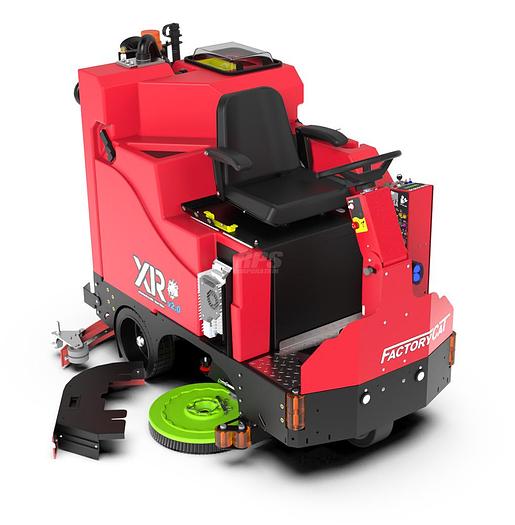

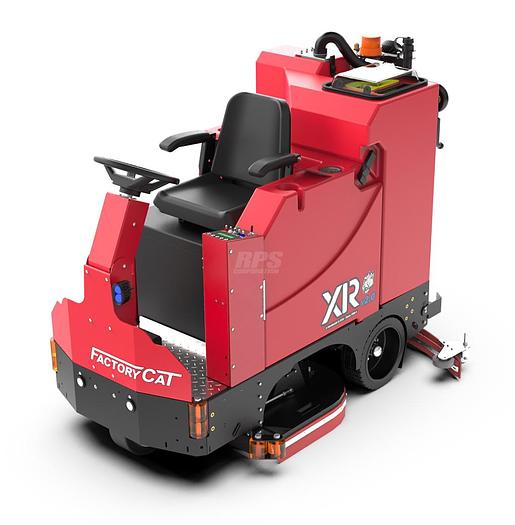

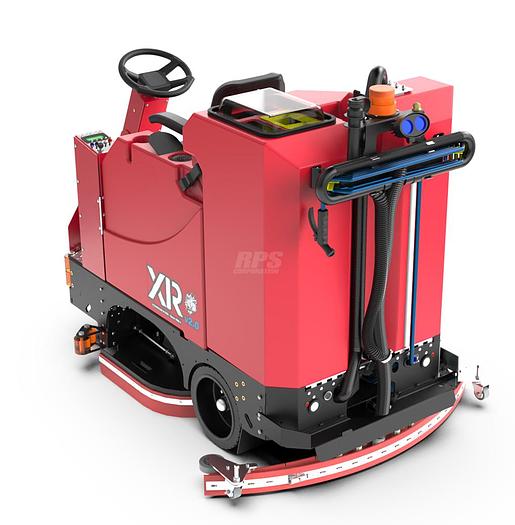

Factory Cat XR Rider Floor Scrubber (40" Disk)
Model XR-40D · Stock 700V2-40FD
Description
The Factory Cat XR 40” disk is the narrowest disk deck on the largest rider Factory Cat builds, with the biggest tanks in the line. Best for: very large spaces from about 60,000 to 150,000 sq ft: distribution centers, manufacturing plants, and big-box warehouses. Smooth hard floors such as VCT, tile, terrazzo, and sealed concrete.
- 40” dual-disk deck, two 1.5 hp motors at 350 rpm, up to 250 lb down pressure
- Front-wheel drive, operator seated and facing forward
- 65 gal solution / 78 gal recovery tanks, up to 5 hours per charge
- 49,587 sq ft/hr theoretical coverage at 63 dB(A), 1,925 to 1,975 lb operating weight
Standard build includes six 6 V / 325 Ah wet batteries (36 V system), an onboard 36 V / 25 A charger, a stainless-steel deck and squeegee, and dual 1 hp vacuum motors.

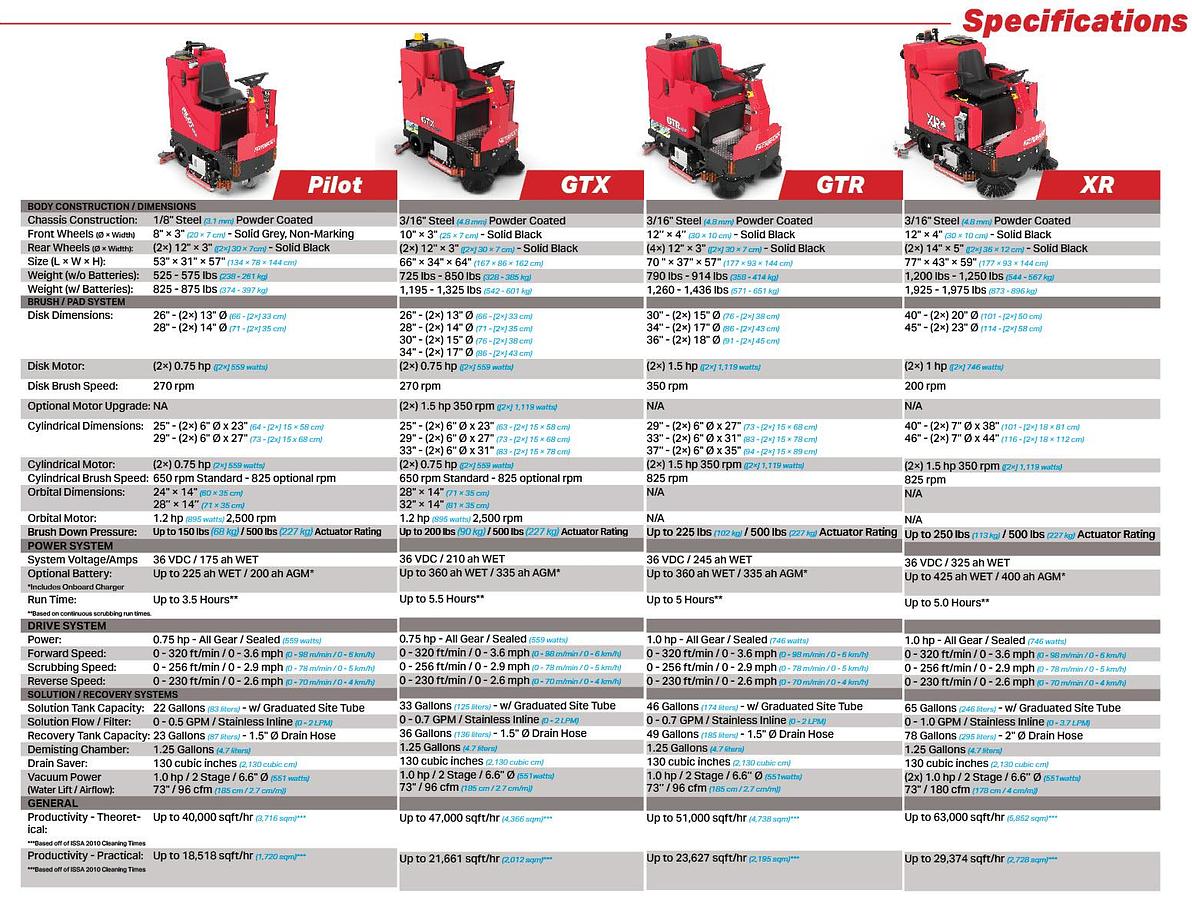

Specifications
| Type | Rider |
|---|---|
| Cleaning path | 40" |
| Brush | Disk |
| Power | 36 V battery (325 Ah, wet) |
| Run time | up to 5 hr |
| Tanks (solution / recovery) | 65 / 78 gal |
| Productivity | 49,587 sq ft/hr |
| Drive | Traction drive |
| Brush pressure | up to 250 lb |
| Brush speed | 350 rpm |
| Weight | 1,925–1,975 lb |
| Sound | 63 dB(A) |
What's included
- Choice of controller and scrub brush fiber
- Automatic brush pressure control with 5 settings
- 3/16" / 4.7 mm / 7 ga powder coated steel frame
- 65 gal / 246 L poly solution tank with "Site Tube" level gauge and integrated drain hose
- 78 gal / 295 L heavy duty poly tank with 1.5" diameter drain hose with flow control
- Stainless steel deck and squeegee
- Disk deck: Dual 1.5 HP / 350 RPM motors
- Brush down pressure: up to 250 lb (113 kg) / 1200 lb (270 kg) capacity actuator
- HD side rollers protect scrub deck
- Solution pump for consistent flow
- Dual 1.0 HP / 6.5" diameter vacuum motors with 2" hoses
- Vacuum clogged / full operator alert system
- "vacuum saver" demisting chamber with unloader valve
- (6) 6 V / 325 Ah wet batteries — 36 V system
- Onboard 36 V / 25 A charger
- Swing squeegee with 4 sided rear blade
- Electric actuated squeegee suspension with automatic up in reverse
- Drain Saver system
- Stainless fasteners
- Smart Solution turns off solution when scrubber pauses or is turned off
- Powerful wheel motor front wheel drive with all metal gears
- Heavy duty solid tires front and rear
- Backup alarm / operator seat switch
- Flip up rear bumper
- Horn / E-Stop
- Operator and parts manuals
- 54" squeegee
Available options
Controller
- Red Military Grade Controller
- Black Legacy Trio LCD Controller
- Touch Screen Controller, 4" Display
Batteries and chargers — lithium
- 270ah Lithium Battery Package (Qty 6) + Onboard Charger 36V/33A(Requires Custom Program Charger + Controller)
Batteries — lead acid (wet)
- Battery Upgrade WET 420ah
- Battery Upgrade WET 360ah
Batteries — AGM (maintenance-free)
- Battery Upgrade AGM 400ah
Single-point watering systems
- Single Point Watering System w/ Indicator Light Plumbed
- Single Point Watering System w/ Indicator Light Hand Pump
Tank configuration
- Spec Ops Package
Cleaning, sanitizing and disinfecting
- O3+ Package: Aqueous Ozone & Chemical Dilution
- Suds Onboard Chemical Dilution with case of soap
- ZerO3 Onboard Aqueous Ozone Package
Off-board cleaning
- Blue Garden Hose w/ Spray Nozzle, 45PSI
- Vacuum Wand
- Off Aisle Vacuum Wand & Spray Jet - 45 psi/ 3gpm
Wheels, tires and casters
- Front Tire Swap, P7
- Front Tire Swap, Grey Non-Marking
- Rear Tires Swap, Grey Non-Marking
Electrical
- Blue Safety Light - Front & Rear Facing
- Strobe Light - Amber
- Freezer Package
- Dual Headlights & Dual Rear Worklights
- Dual Manager Lock Out - Solution & Pressure- Black Legacy Trio Only
Other options
- Drain Hose Extension, 15' 1.5" Diameter Hose
- Squeegee Hose with Coiled Trap at End
- Seat Belt
- Raised Operator Floor Plate
- Hopper Screen
Side broom systems (factory installed)
- Side Broom System w/ HD Broom Guards
Heavy duty
- 4-Post Overhead Guard / Factory install only
- Brass Cylindrical Idler & Driver Upgrade
- Mainframe Undercoating
Heavy duty side doors
- Side Doors, Disk 40"
Squeegee size
- 46" Squeegee V1
- 53" Squeegee V1
- 60" Squeegee V1
- 54" squeegee in lieu of 61"
- 61" squeegee in lieu of 54"
- 48" squeegee in lieu of 54"
Brushes — 40" disk
- Set of 2 - 20" Pad Driver 8-Lobe Green
- Set of 2 - 20" Nylon 8-Lobe Green
- Set of 2 - 20" Poly 8-Lobe Green
- Set of 2 - 20" Light-Grit 8-Lobe Green
- Set of 2 - 20" Mid-Grit 8-Lobe Green
- Set of 2 - 20" Tough-Grit 8-Lobe Green
- Set of 2 - 20" Super Grit 8-Lobe Green
- Set of 2 - 20" Tampico 8-Lobe Green
Options are factory-installed at order time. Ask for a quote with the options you want.
