Factory Cat 34 Automatic Walk-Behind Sweeper

New · Factory Cat

Model 34 · Stock 34

Get a quote Call (262) 333-0799

Factory Cat 34 Automatic Walk-Behind Sweeper

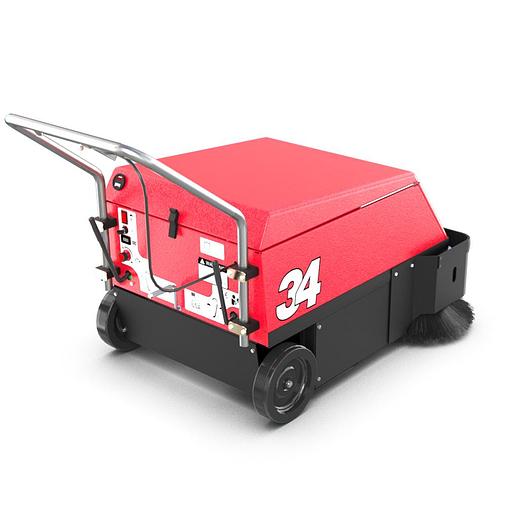

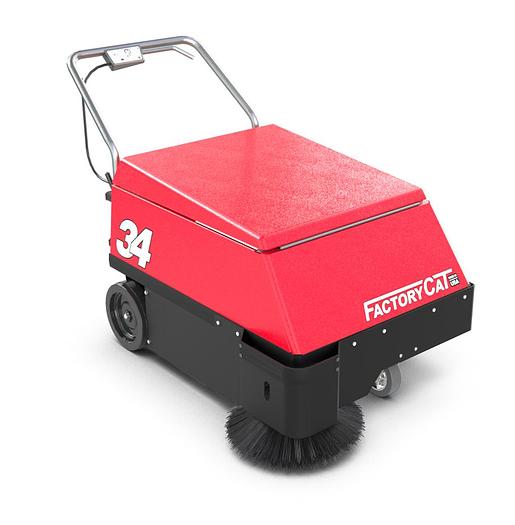

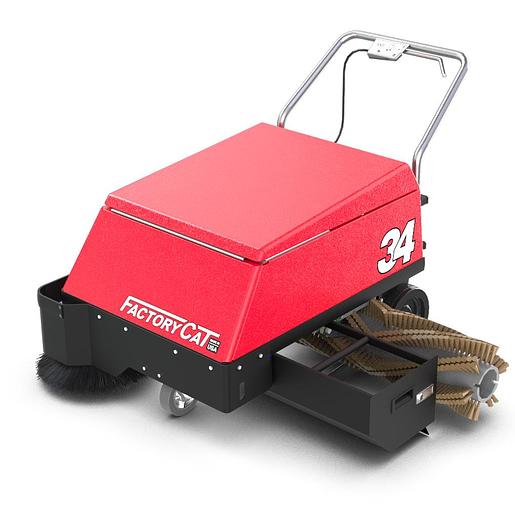

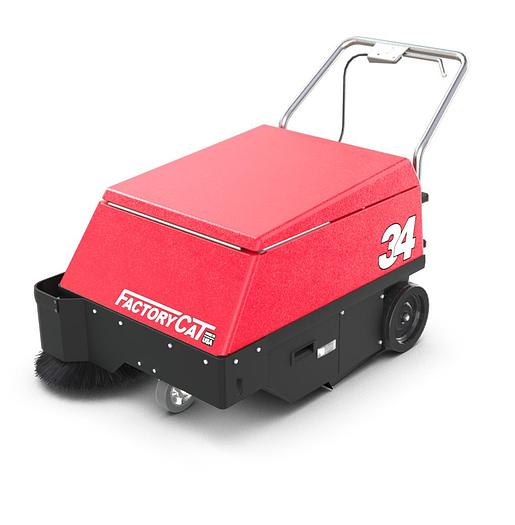

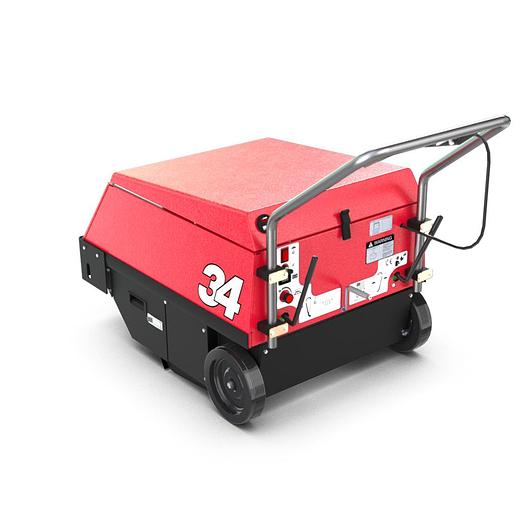

Factory Cat 34 Automatic Walk-Behind Sweeper — photo 1 Factory Cat 34 Automatic Walk-Behind Sweeper — photo 2 Factory Cat 34 Automatic Walk-Behind Sweeper — photo 3 Factory Cat 34 Automatic Walk-Behind Sweeper — photo 4 Factory Cat 34 Automatic Walk-Behind Sweeper — photo 5

Description

The Factory Cat 34 is an all-steel walk-behind sweeper with a 1-micron Baghouse dust filter, built for industrial floors where dust control matters as much as debris pickup. Best for: mid-size areas from about 20,000 to 60,000 sq ft: warehouses, machine shops, fabrication floors, and parking structures. Hard floors indoors and out: concrete, asphalt, sealed floors, and paved lots.

  • 34” sweeping path from a 26” main broom and 17” side broom
  • 2 cu ft slide-out hopper, floating main broom suspension
  • Traction drive with rear-wheel differential and parking brake
  • 3 to 5 hours per charge, 30,000 sq ft/hr theoretical coverage
  • 70 dB(A) and 450 lb

Standard build includes a 12 V / 175 Ah wet battery with onboard 12 V / 18 A charger, 1 hp brush motor, and the Baghouse filter.

Specifications

TypeWalk-behind
Cleaning path34"
Hopper2 cu ft
Power12 V battery (175 Ah, wet)
Run time3–5 hr
Productivity30,000 sq ft/hr
DriveTraction drive
Brush speed400 rpm
Weight450 lb
Sound70 dB(A)
What's included
  • Battery gauge / hour meter
  • Choice of broom
  • All steel construction
  • Powder painted, 16X more corrosion resistance than traditional enamel
  • 26" main broom / 17" side broom
  • Floating main broom suspension
  • Long life 1 micron poly "Baghouse" dust filter
  • (1) 12 V / 175 Ah wet battery — 12 V system
  • Onboard 12 V / 18 A charger
  • 1.0 HP brush motor
  • 0.2 HP side motor
  • Capstan clutch drive – rear wheel differential
  • Integrated parking brake
  • 900 lb front caster / 10" x 2" solid rear tires
  • Adjustable stainless handlebar
  • Hood operated safety switch
  • Slide out hopper
  • Operator and parts manuals
Available options

Batteries — AGM (maintenance-free)

  • Battery Upgrade AGM 240ah

Chargers

  • Charger, On Board, AGM, 12V/25A

Battery and charger accessories

  • Spare Battery 175ah with Battery Harness

Single-point watering systems

  • Single Point Watering System w/ Indicator Light Hand Pump

Wheels, tires and casters

  • Three Wheel Caster
  • Non Marking Grey Rear Tires 10" X 2"

Electrical

  • Headlight, LED with On/Off Switch
  • Headlight, LED with On/Off Switch
  • Key Switch
  • Side Broom Speed Control
  • Strobe Light - Amber
  • Horn with Handle Bar Control

Other options

  • Color Swap - Red to Granite
  • Left & Right Side Roller Wheel - Can not be usedwith HD bumper
  • 1/32" Hopper Flap in lieu of 1/16"

Filters

  • Filter, 0.2 Micron
  • Filter, Nomex

Heavy duty

  • Heavy Duty Bumper

Brooms

  • Broom,Main,Poly
  • Broom,Main,Nylon
  • Broom,Main, Carpet Poly Broom
  • Broom,Main,Poly and Steel
  • Broom,Main,Union
  • Broom,Main,Union and Steel

Options are factory-installed at order time. Ask for a quote with the options you want.
