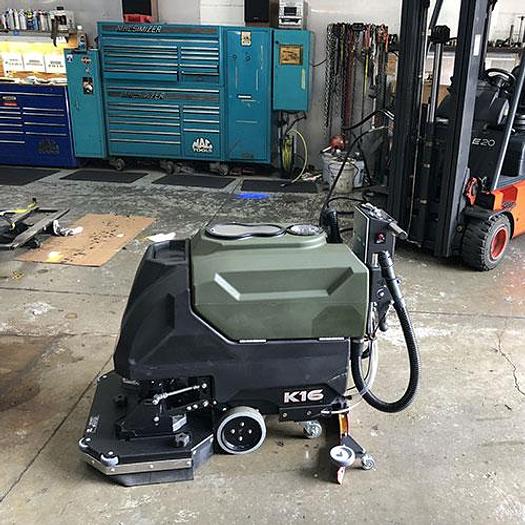

Kodiak K16 Walk-Behind Floor Scrubber (20" Disk) Traction-Drive
Model K16-20D · Stock K16-706-20D
$7,467
Description
The Kodiak K16 20” disk with traction drive is the mid-size Kodiak walk-behind at its narrowest path, with larger tanks and a bigger battery pack than the K12 for a longer shift. Best for: small to mid-size spaces from about 10,000 to 30,000 sq ft: retail, schools, healthcare, and production areas with narrow aisles. Smooth hard floors such as VCT, tile, terrazzo, and sealed concrete.
- 20” disk deck, 0.75 hp pad driver at 180 rpm
- Traction drive, so the operator steers rather than pushes
- 16 gal solution / 16 gal recovery tanks, up to 3 hours per charge
- 25,000 sq ft/hr theoretical coverage at 66 dB(A)
Standard build includes two 12 V / 130 Ah wet batteries (24 V system), an onboard 24 V / 12 A charger, an all-steel frame, and a curved squeegee.
Specifications
| Type | Walk-behind |
|---|---|
| Cleaning path | 20" |
| Brush | Disk |
| Power | 24 V battery (130 Ah, wet) |
| Run time | up to 3 hr |
| Tanks (solution / recovery) | 16 / 16 gal |
| Productivity | 25,000 sq ft/hr |
| Drive | Traction drive |
| Brush speed | 180 rpm |
| Sound | 66 dB(A) |
What's included

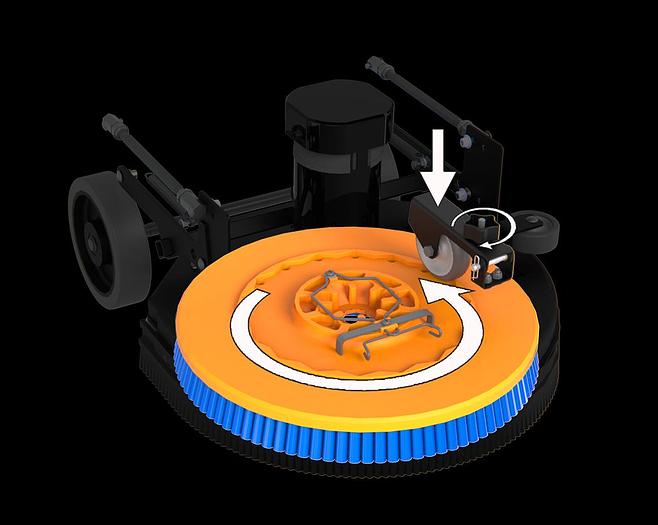

- Disk deck: Pad driver(s) – single brush 0.75 HP / 180 RPM – dual brush 0.75 HP / 270 RPM
- (2) 12 V / 130 Ah wet batteries — 24 V system
- Onboard 24 V / 12 A charger
- All steel 3/16" / 4.7 mm / 7 ga powder coated frame supports weight of machine

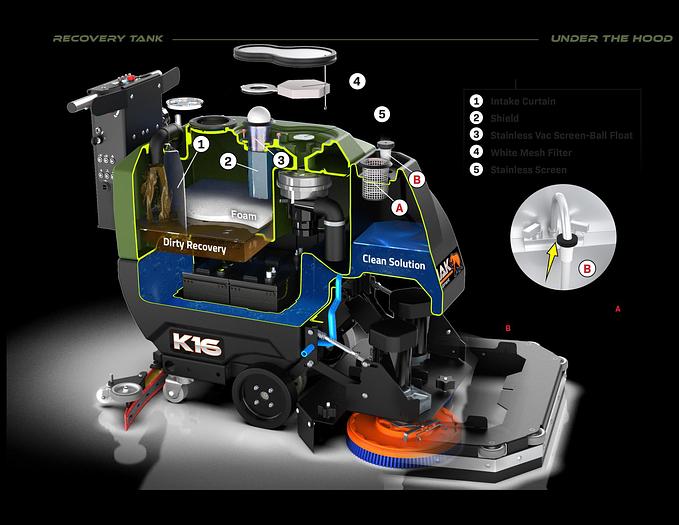

- 16 gal / 60 L poly solution tank and 16 gal / 60 L poly recovery tank
- Curved squeegee with tool-less blade adjustments
- 250 lb capacity scrub deck actuator
- Hand guards
Available options
Batteries and chargers
- 130ah WET / Onboard Charger CE & CEC 12Aincluded
- 130ah WET (2x) / Console Charger 24V/27A$26
- 150ah WET (2x) / Onboard CE & CEC 12A$136
- 150ah WET (2x) / Console Charger 24V/27A$165
- 140ah AGM (2x) / Onboard CE & CEC 12A$342
- 140ah AGM (2x) / Console Charger 24V/27A$359
- 24V,90ah,Lithium Battery,w/Weights&Onboard Charger$3,451
Options
- Deluxe Fill Option - Includes Retractable Hose& Front Fill Screen$112
- Drain Hose Extension 20'$118
- Vacuum Wand$295
- Green Antimicrobial Tanks$462
Tires
- Tires, Drive, Solid Black - Pad Assistincluded
- Tires, Drive, Solid Black - Tractionincluded
- Tires, Drive, Solid Non-Marking Grey - Pad Assist$107
- Tires, Drive, Solid Non-Marking Grey - Traction$107
Squeegees — 20" deck
- 33" Squeegeeincluded
Controller
- Military Grade Central Commandincluded
- 24v - 3” Color LCD Orio DES (70a)$428
Brushes — 20" disk
- Pad Driver 20" 7-Lobe Orange (Spare: 706-20D)included
- Nylon 20" 7-Lobe Orange (Spare: 706-20N)$112
- Poly 20"7-Lobe Orange (Spare: 706-20P)$112
- Light-Grit 20"7-Lobe Orange (Spare: 706-20PS)$196
- Midi-Grit 20" 7-Lobe Orange (Spare: 706-20C)$196
- Tough-Grit 20"7-Lobe Orange (Spare: 706-20S)$196
Options are factory-installed at order time. Ask for a quote with the options you want.
