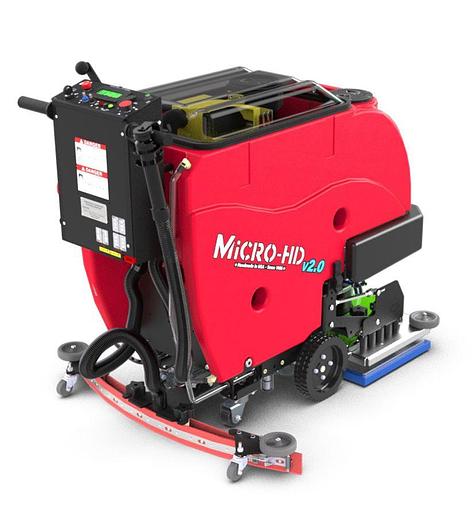

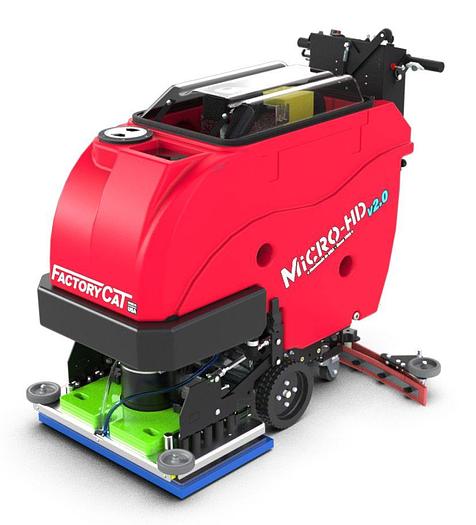

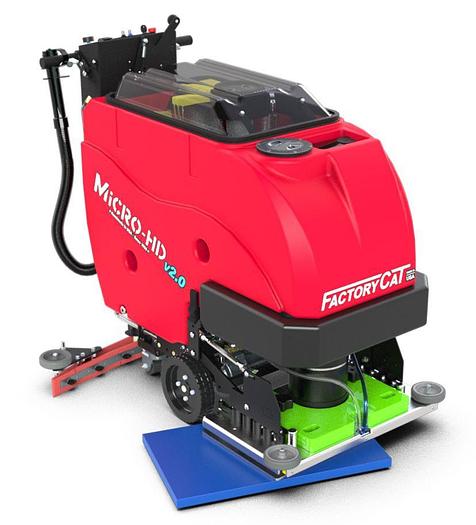

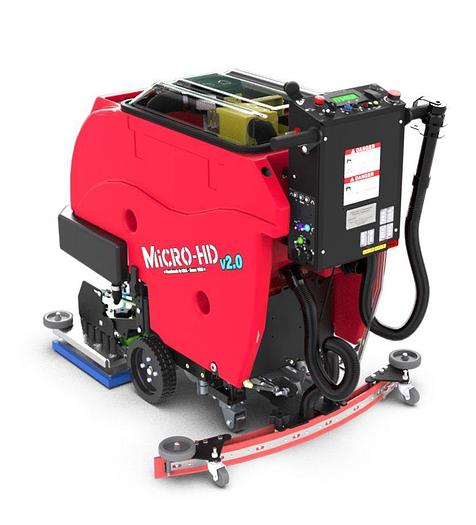

Factory Cat Micro-HD Floor Scrubber (28" Orbital)
Model MICRO-HD28FR · Stock 155V2-28FR
Description
The Factory Cat Micro-HD 28” orbital is the widest orbital pad on Factory Cat’s compact HD walk-behind, for chemical-free finish removal at the fastest pace a Micro-HD can manage. Best for: small to mid-size spaces from about 5,000 to 20,000 sq ft: schools, healthcare, and retail floors that get stripped and recoated on a schedule. Smooth hard floors such as VCT, terrazzo, and sealed concrete.
- 28” orbital deck, 1 hp at 2,500 rpm, up to 175 lb down pressure
- Chemical-free finish removal, no swirl marks
- Traction drive, so the operator steers rather than pushes
- 13 gal solution / 15 gal recovery tanks, up to 2.5 hours per charge
- 26,000 sq ft/hr theoretical coverage
Standard build includes two 12 V / 130 Ah wet batteries (24 V system), an onboard 24 V / 12 A charger, and a stainless-steel squeegee.

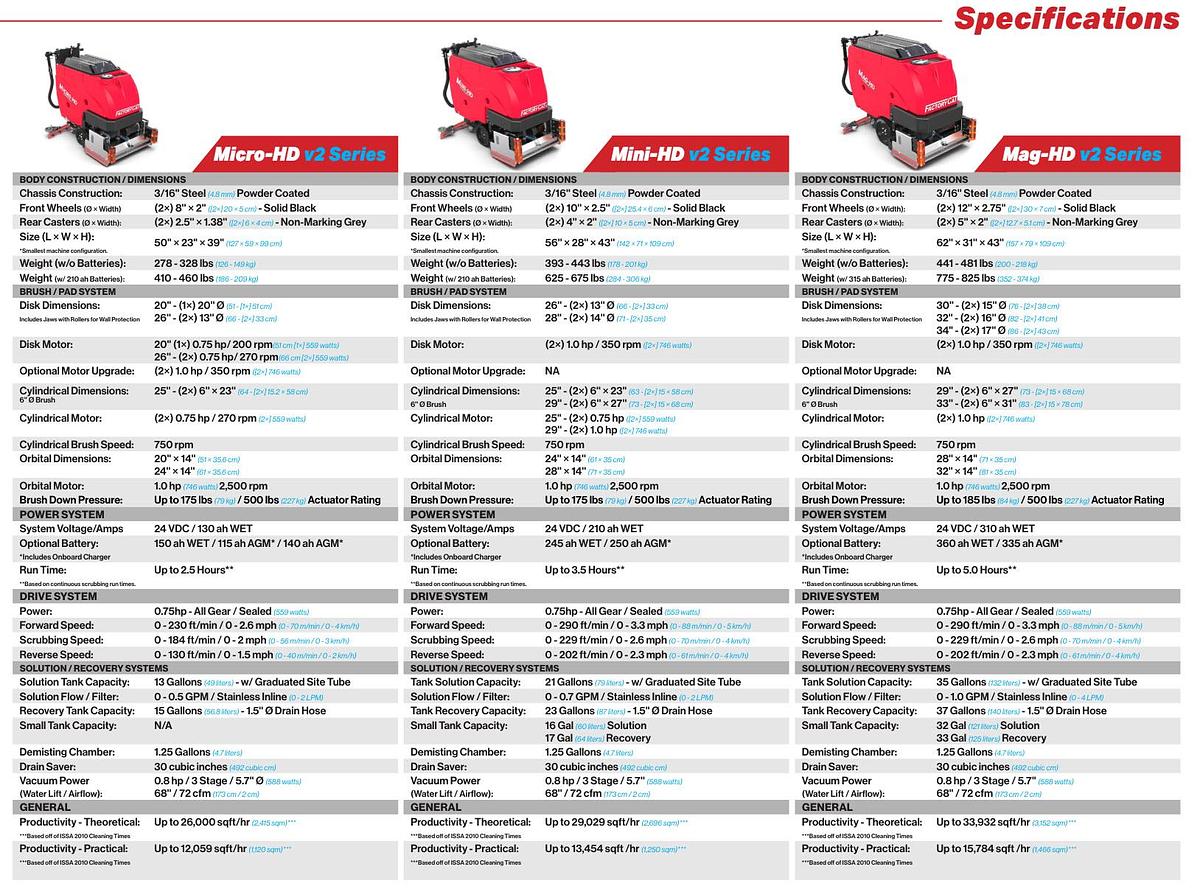

Specifications
| Type | Walk-behind |
|---|---|
| Cleaning path | 28" |
| Brush | Orbital |
| Power | 24 V battery (130 Ah, wet) |
| Run time | up to 2.5 hr |
| Tanks (solution / recovery) | 13 / 15 gal |
| Productivity | 26,000 sq ft/hr |
| Drive | Traction drive |
| Brush pressure | up to 175 lb |
| Brush speed | 2,500 rpm |
| Weight | 410–460 lb |
What's included
- Choice of controller and scrub brush
- All steel 3/16" / 4.7 mm / 7 ga powder coated frame supports weight of machine
- 13 gal / 49 L poly solution tank with "Site Tube" level gauge and integrated drain hose
- 15 gal / 56 L poly recovery tank with 1.5" / 38 mm diameter drain hose with flow control
- Stainless cylindrical deck and hopper: dual 0.75 HP (25") / 750 RPM brush speed
- Orbital deck: 1.0 HP / 2500 RPM – 3 weights (16.5 / ea), blue pad
- Patented Bandeau for noise reduction and vacuum protection
- (2) 12 V / 130 Ah wet batteries — 24 V system
- Onboard 24 V / 12 A charger
- Drain Saver system
- Stainless-steel squeegee
- Stainless fasteners
- 37" squeegee
Available options
Controller
- Nidec Membrane w/ Plain LCD
- Nidec Touch Screen Black
- Military Red
Batteries — lead acid (wet)
- Battery Upgrade WET 150ah
Batteries — AGM (maintenance-free)
- Battery Upgrade AGM 150ah
Batteries — lithium
- 130ah Lithium Battery Package (Qty 2) + Onboard Charger 24V/27A (Requires Custom Program Charger + Controller)
Chargers
- Charger, Universal, Onboard, WET 24V/27A, w/Inhibit, CE & CEC
- Charger, Universal, Onboard, AGM 24V/27A, w/Inhibit, CE & CEC
- Charger,Onboard,AGM,24V/12A
Single-point watering systems
- Single Point Watering System w/ Indicator Light / Hand Pump
Tank configuration
- Spec Ops Package
Cleaning, sanitizing and disinfecting
- O3+ Package: Aqueous Ozone & Chemical Dilution
- ZerO3 Onboard Aqueous Ozone Package
- Suds Onboard Chemical Dilutionwith case of soap samples
- Sanitation Package
Cleaning, sanitizing and disinfecting accessories
- Green Antimicrobial Tanks
- Vacuum Filter 0.2 Micron
- 3 gal Remote Tank w/Green High-Pressure Hose, Spray Gun w/3 Tips, 100PSI
- Green High-Pressure Hose, Spray Gun w/3 Tips, 100PSI
- Vacuum Wand
- Vac/Brush Flip Wand w/ Green High-Pressure Hose, Spray Gun w/3 Tips, 100PSI
Wheels, tires and casters
- Casters, Rear, Soft Grey Non-Marking
- Tires,Drive,Solid Gray
Electrical
- Tape Switch Drive includes E-Stop
- Freezer Package
- Dual Manager Lock Out - Solution & Pressure- Legacy Controller Only
- Back Up Alarm
Other options
- Parking Brake, Dual, Manual
- Color Swap - Red to Granite
- Hopper Screen
- Oil Resistant Heavy Duty Hoses
- Drain Hose Extension 20'
- Drain Hose Extension 20'
Heavy duty
- Metal Recovery Lid
- Hand Guards
- Motor Upgrade, 1HP in lieu of 3/4HP, Single Disk-20 inch Disk Only
Heavy duty — orbital
- 28" EDGE Motor Upgrade 1.2 HP / 2900 RPM
Stainless steel
- Stainless Frame & Undercoated Package
Squeegee size
- 37" + Squeegee - Standard on 26D, 25C, 24R & 28R
Options are factory-installed at order time. Ask for a quote with the options you want.
