Factory Cat Micromini Floor Scrubber (20" Disk)
Model MICROMINI-20D · Stock 164-20FB
Description

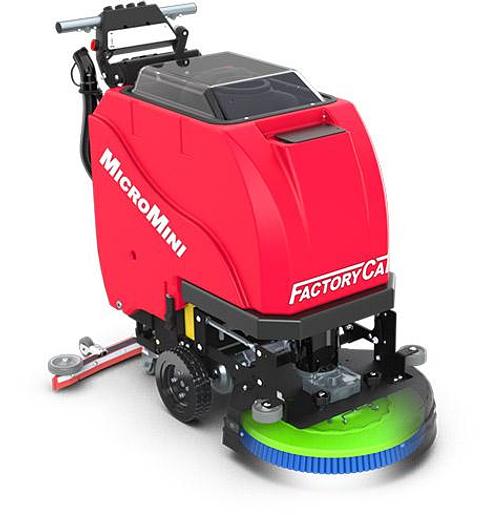

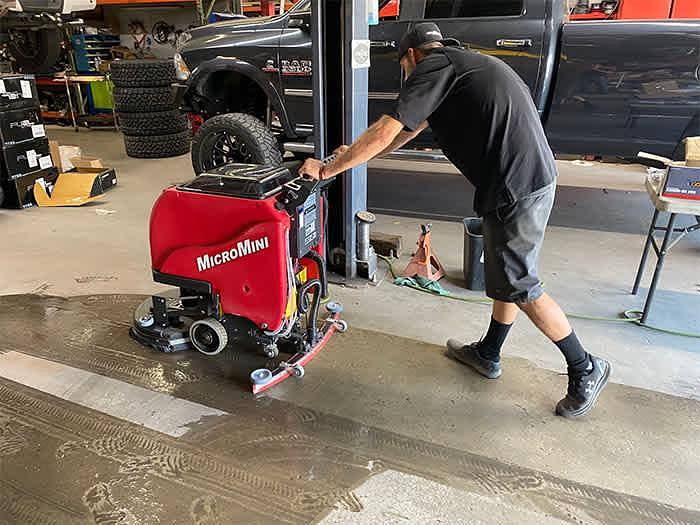

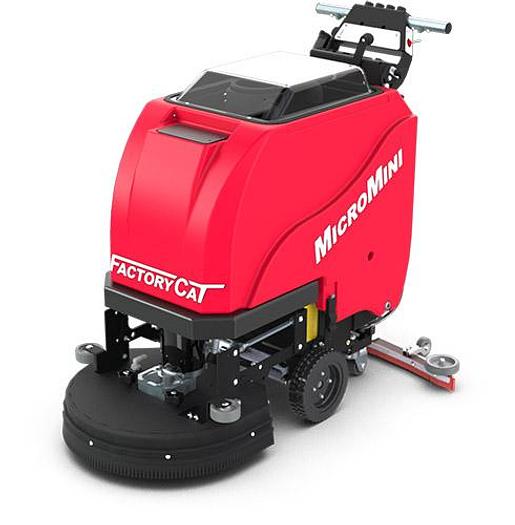

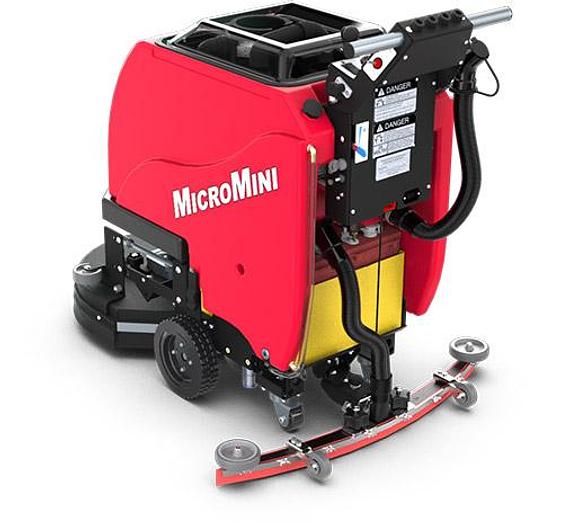

The Factory Cat MicroMini 20” disk pad-assist is the simplest 20” scrubber Factory Cat builds: no drive motor, the pad pulls the machine forward. Best for: small spaces from about 5,000 to 15,000 sq ft: schools, retail, garages, and clinics that want a lighter, lower-cost machine. Smooth hard floors such as VCT, tile, terrazzo, and sealed concrete.
- 20” disk deck, 0.75 hp at 200 rpm, up to 100 lb down pressure
- Pad-assist drive, light enough to turn in a hallway and simple to train on
- 10 gal solution / 10 gal recovery tanks, up to 3.5 hours per charge
- 15,748 sq ft/hr theoretical coverage at 65 dB(A)
Standard build includes two 12 V / 130 Ah wet batteries (24 V system), an onboard 24 V / 12 A charger, and a laser-cut steel curved squeegee.
Specifications
| Type | Walk-behind |
|---|---|
| Cleaning path | 20" |
| Brush | Disk |
| Power | 24 V battery (130 Ah, wet) |
| Run time | up to 3.5 hr |
| Tanks (solution / recovery) | 10 / 10 gal |
| Productivity | 15,748 sq ft/hr |
| Brush pressure | up to 100 lb |
| Brush speed | 200 rpm |
| Weight | 380–480 lb |
| Sound | 65 dB(A) |
What's included
- Choice of brush
- All steel 1/8" / 3.2 mm / 10 ga powder coated steel frame supports weight of machine
- 10 gal / 38 L poly solution tank with "Site Tube" level gauge and integrated drain hose
- 10 gal / 38 L poly recovery tank with 1.5" / 38 mm diameter drain hose with flow control
- Disk deck: Single 0.75 HP / 200 RPM
- Brush down pressure: up to 100 lb (45 kg) / 250 lb (113.4 kg) capacity actuator
- Shroud protects scrub deck
- 0.8 HP / 3 stage vacuum motor
- (2) 12 V / 130 Ah wet batteries — 24 V system
- Onboard 24 V / 12 A charger
- Laser cut steel curved squeegee design with turnable rear blade
- Manual squeegee lift / 250 lb capacity cable
- Drain Saver system
- Stainless fasteners
- Smart Solution turns off solution when scrubber pauses or is turned off
- Heavy duty solid tires rear / heavy duty casters front
- Operator and parts manuals
- 34" squeegee
Available options
Batteries — lead acid (wet)
- Battery Upgrade WET 150ah
Batteries — AGM (maintenance-free)
- Battery Upgrade AGM 115ah
Chargers
- Charger, On Board, WET, 24V/15A CEC
- Charger, On Board, AGM, 24V/15A CEC
- Charger, Universal, Console, WET, 24V/27A CEC
- Charger, Universal, Console, AGM, 24V/27A CEC
Single-point watering systems
- Single Point Watering System w/ Indicator Light / Hand Pump
Off-board cleaning
- Green High-Pressure Hose, Spray Gun w/3 Tips, 100PSI
- Vacuum Wand
- Vac/Brush Flip Wand w/ Green High-Pressure Hose, Spray Gun w/3 Tips, 100PSI
Wheels, tires and casters
- Tires, Drive, Solid Grey Non-Marking - Traction
- Caster, Rear, Soft Grey
Electrical
- Scrubdeck Amp Gauge
- Freezer Package
- Low Tone Vacuum Motor
Electrical (traction drive)
- Switch, E-Stop - Traction Drive Only
- Charge Inhibit Switch - Traction Drive Only
Other options
- Parking Brake, Dual, Manual
- Color Swap - Red to Granite
- Drain Hose Extension 20'
- Drain Hose Extension 20'
Filters
- Vacuum Exhaust Filter, 0.2 Micron
Heavy duty
- Mainframe Undercoating
Squeegee size substitution
- 26" Squeegee in Lieu of 34" Linatex
- 30" Squeegee in Lieu of 34" Linatex
- 34" Squeegee in Lieu of 30" Linatex
Brushes — 20" disk
- Pad Driver 20" 8-Lobe Green
- Nylon 20" 8-Lobe Green
- Poly 20" 8-Lobe Green
- Light-Grit 20" 8-Lobe Green
- Midi-Grit 20" 8-Lobe Green
- Tough-Grit 20" 8-Lobe Green
- Super-Grit 20" 8-Lobe Green
- Tampico 20" 8-Lobe Green
- Pad Driver Snap Driver 20" 8-Lobe Green
Options are factory-installed at order time. Ask for a quote with the options you want.
