Factory Cat Micromini Floor Scrubber (17" Disk-Traction)
Model MICROMINI-17DT · Stock 164-17FD
Description
The Factory Cat MicroMini is the smallest scrubber Factory Cat builds, and this 17” disk version adds traction drive so the machine moves itself through doorways and tight turns. Best for: small spaces from about 5,000 to 15,000 sq ft: convenience stores, clinics, restaurants, and offices with narrow aisles. Smooth hard floors such as VCT, tile, terrazzo, and sealed concrete.
- 17” disk deck, 0.75 hp at 200 rpm, up to 100 lb down pressure
- Traction drive, so the operator steers rather than pushes
- 10 gal solution / 10 gal recovery tanks, up to 3.5 hours per charge
- 15,748 sq ft/hr theoretical coverage at 65 dB(A)
Standard build includes two 12 V / 130 Ah wet batteries (24 V system), an onboard 24 V / 12 A charger, and a laser-cut steel curved squeegee.

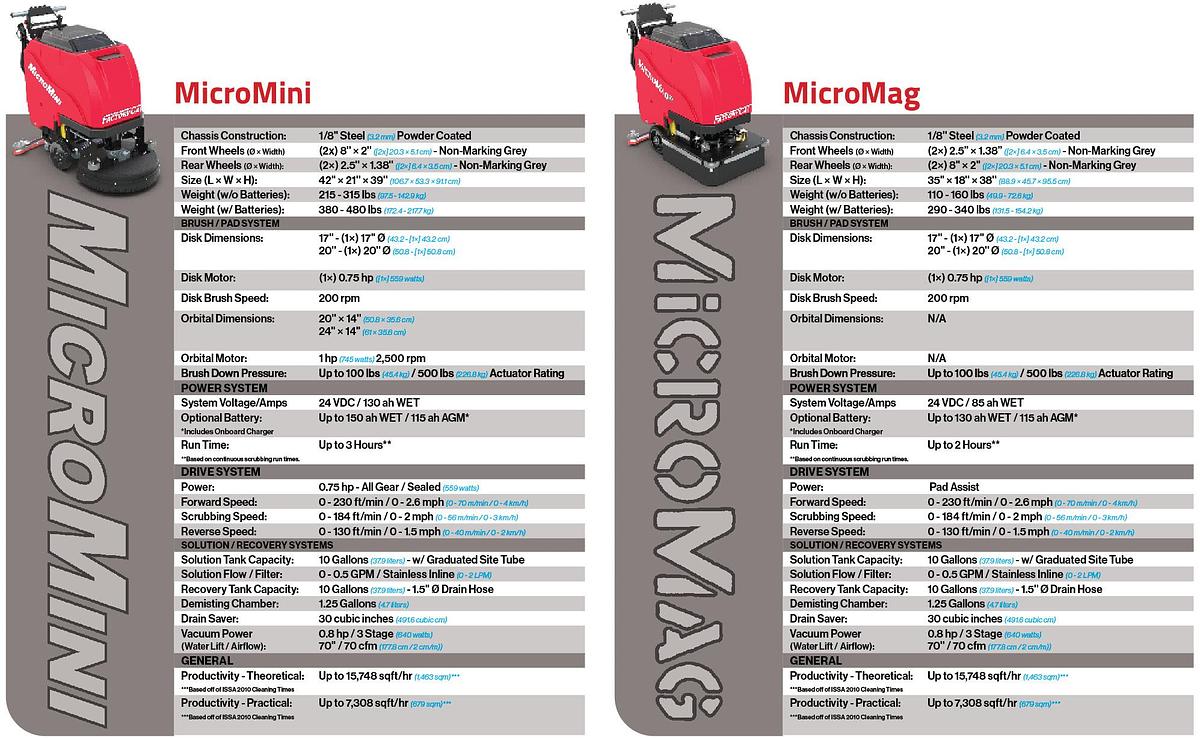

Specifications
| Type | Walk-behind |
|---|---|
| Cleaning path | 17" |
| Brush | Disk |
| Power | 24 V battery (130 Ah, wet) |
| Run time | up to 3.5 hr |
| Tanks (solution / recovery) | 10 / 10 gal |
| Productivity | 15,748 sq ft/hr |
| Drive | Traction drive |
| Brush pressure | up to 100 lb |
| Brush speed | 200 rpm |
| Weight | 380–480 lb |
| Sound | 65 dB(A) |
What's included
- Choice of brush
- All steel 1/8" / 3.2 mm / 10 ga powder coated steel frame supports weight of machine
- 10 gal / 38 L poly solution tank with "Site Tube" level gauge and integrated drain hose
- 10 gal / 38 L poly recovery tank with 1.5" / 38 mm diameter drain hose with flow control
- Disk deck: Single 0.75 HP / 200 RPM
- Brush down pressure: up to 100 lb (45 kg) / 250 lb (113.4 kg) capacity actuator
- Shroud protects scrub deck
- 0.8 HP / 3 stage vacuum motor
- (2) 12 V / 130 Ah wet batteries — 24 V system
- Onboard 24 V / 12 A charger
- Laser cut steel curved squeegee design with turnable rear blade
- Manual squeegee lift / 250 lb capacity cable
- Drain Saver system
- Stainless fasteners
- Smart Solution turns off solution when scrubber pauses or is turned off
- Heavy duty solid tires rear / heavy duty casters front
- Operator and parts manuals
- 30" squeegee
Available options
Batteries — lead acid (wet)
- Battery Upgrade WET 150ah
Batteries — AGM (maintenance-free)
- Battery Upgrade AGM 115ah
Chargers
- Charger, On Board, WET, 24V/15A CEC
- Charger, On Board, AGM, 24V/15A CEC
- Charger, Universal, Console, WET, 24V/27A CEC
- Charger, Universal, Console, AGM, 24V/27A CEC
Single-point watering systems
- Single Point Watering System w/ Indicator Light / Hand Pump
Off-board cleaning
- Green High-Pressure Hose, Spray Gun w/3 Tips, 100PSI
- Vacuum Wand
- Vac/Brush Flip Wand w/ Green High-Pressure Hose, Spray Gun w/3 Tips, 100PSI
Wheels, tires and casters
- Tires, Drive, Solid Grey Non-Marking - Traction
- Caster, Rear, Soft Grey
Electrical
- Scrubdeck Amp Gauge
- Freezer Package
- Low Tone Vacuum Motor
Electrical (traction drive)
- Switch, E-Stop - Traction Drive Only
- Charge Inhibit Switch - Traction Drive Only
Other options
- Parking Brake, Dual, Manual
- Color Swap - Red to Granite
- Drain Hose Extension 20'
- Drain Hose Extension 20'
Filters
- Vacuum Exhaust Filter, 0.2 Micron
Heavy duty
- Mainframe Undercoating
Squeegee size substitution
- 26" Squeegee in Lieu of 34" Linatex
- 30" Squeegee in Lieu of 34" Linatex
- 34" Squeegee in Lieu of 30" Linatex
Brushes — 17" disk
- Pad Driver 17" 8-Lobe Green
- Nylon 17" 8-Lobe Green
- Poly 17" 8-Lobe Green
- Light-Grit 17" 8-Lobe Green
- Midi-Grit 17" 8-Lobe Green
- Tough-Grit 17" 8-Lobe Green
- Super-Grit 17" 8-Lobe Green
- Tampico Brush 17" 8-Lobe Green
- Pad Driver Snap Driver 17" 8-Lobe Green
Options are factory-installed at order time. Ask for a quote with the options you want.
