Factory Cat Mag-HD Floor Scrubber (32" Disk)

New · Factory Cat

Model MAGHD-32FD · Stock 264V2-32FD

Get a quote Call (262) 333-0799

Factory Cat Mag-HD Floor Scrubber (32" Disk)

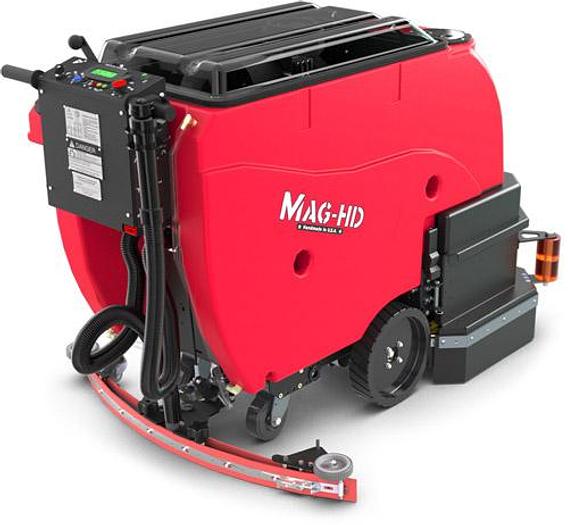

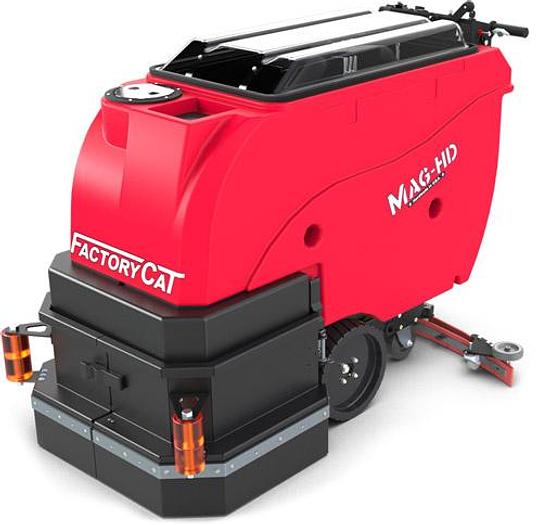

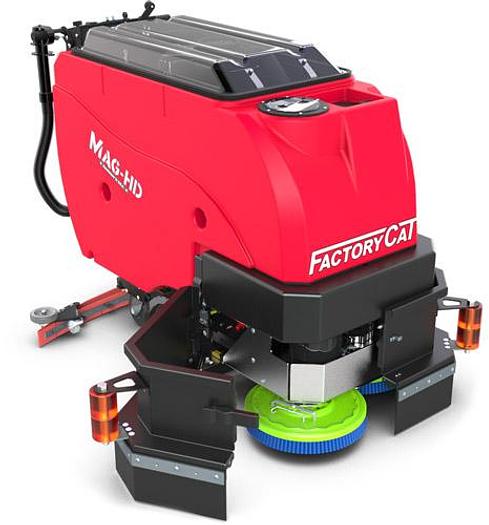

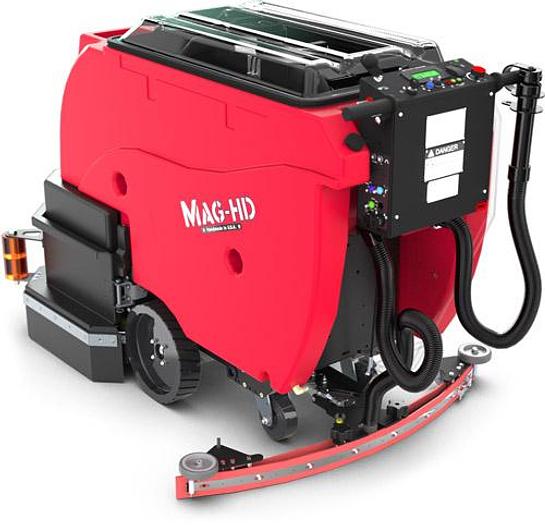

Factory Cat Mag-HD Floor Scrubber (32" Disk) — photo 1 Factory Cat Mag-HD Floor Scrubber (32" Disk) — photo 2 Factory Cat Mag-HD Floor Scrubber (32" Disk) — photo 3 Factory Cat Mag-HD Floor Scrubber (32" Disk) — photo 4 Factory Cat Mag-HD Floor Scrubber (32" Disk) — photo 5 Factory Cat Mag-HD Floor Scrubber (32" Disk) — photo 6

Description

The Factory Cat Mag-HD 32” disk is the mid-width dual-disk deck on Factory Cat’s largest walk-behind, more floor per pass than the 30” on the same five-hour chassis. Best for: large spaces from about 15,000 to 40,000 sq ft: warehouses, distribution, manufacturing, and big-box retail with long open runs. Smooth hard floors such as VCT, tile, terrazzo, and sealed concrete.

  • 32” dual-disk deck, two 1 hp motors at 350 rpm, up to 185 lb down pressure
  • Traction drive, so the operator steers rather than pushes
  • 35 gal solution / 37 gal recovery tanks, up to 5 hours per charge
  • 33,932 sq ft/hr theoretical coverage

Standard build includes four 6 V / 310 Ah wet batteries (24 V system), an onboard 24 V / 33 A charger, and a stainless-steel squeegee.

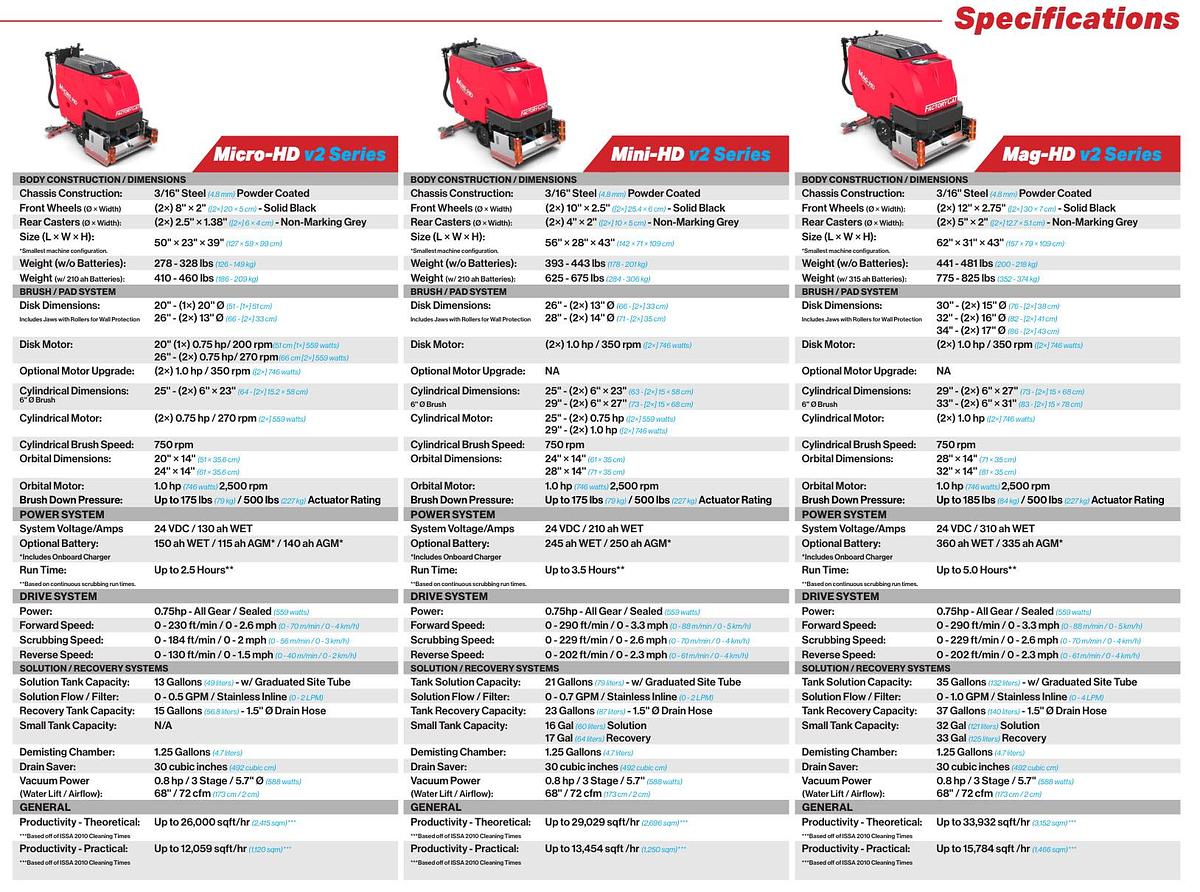

Specifications

TypeWalk-behind
Cleaning path32"
BrushDisk
Power24 V battery (310 Ah, wet)
Run timeup to 5 hr
Tanks (solution / recovery)35 / 37 gal
Productivity33,932 sq ft/hr
DriveTraction drive
Brush pressureup to 185 lb
Brush speed350 rpm
Weight775–825 lb
What's included
  • Choice of controller and scrub brush
  • All steel 3/16" / 4.7 mm / 6 ga powder coated frame supports weight of machine
  • 35 gal / 133 L poly solution tank with "Site Tube" level gauge and integrated drain hose
  • 37 gal / 140 L poly recovery tank with 1.5" / 38 mm diameter drain hose with flow control
  • Disk deck: Dual 1.0 HP / 350 RPM motors
  • Patented Bandeau for noise reduction and vacuum protection
  • (4) 6 V / 310 Ah wet batteries — 24 V system
  • Onboard 24 V / 33 A charger
  • Drain Saver system
  • Stainless-steel squeegee
  • Stainless fasteners
  • 45" squeegee
Available options

Controller

  • Nidec Membrane w/ Plain LCD
  • Nidec Touch Screen Black
  • Military Red

Batteries — lead acid (wet)

  • Battery Upgrade WET 360ah

Batteries — AGM (maintenance-free)

  • Battery Upgrade AGM 335ah

Batteries — lithium

  • 130ah Lithium Battery Package (Qty 2) + Onboard Charger 24V/37A (Requires Custom Program Charger + Controller)
  • 260ah Lithium Battery Package (Qty 4) + Onboard Charger 24V/37A (Requires Custom Program Charger + Controller)

Chargers

  • Charger, Universal, Onboard, AGM 24V/37A, w/Inhibit, CE & CEC

Single-point watering systems

  • Single Point Watering System w/ Indicator Light Hand Pump

Tank configuration

  • Spec Ops Package

Cleaning, sanitizing and disinfecting

  • O3+ Package: Aqueous Ozone & Chemical Dilution
  • Suds Onboard Chemical Dilutionwith case of soap samples
  • Sanitation Package
  • ZerO3 Onboard Aqueous Ozone Package

Cleaning, sanitizing and disinfecting accessories

  • Green Antimicrobial Tanks 31 Gal Sol / 33 Gal Rec
  • 3 gal Remote Tank w/ Green High-Pressure Hose, Spray Gun w/3 Tips, 100PSI
  • Vacuum Filter 0.2 Micron
  • Blue Garden Hose w/ Spray Nozzle, 45PSI
  • Green High-Pressure Hose, Spray Gun w/3 Tips, 100PSI
  • Vacuum Wand
  • Vac/Brush Flip Wand w/ Spray Jet 2 boxes

Shroud and jaw

  • Scrub Deck Shrouds in lieu of Jaws 32" Disk

Wheels, tires and casters

  • Casters, Rear, Soft Grey Non-Marking
  • Tires, Drive, Solid Grey Non-Marking
  • Tires, Drive, Pnumatic, Black
  • Tire, Drive, Solid Black, Metal Hub
  • Tire, Drive, Solid Grey, Metal Hub

Electrical

  • Auto Squeegee Lift
  • Tape Switch Drive includes E-Stop
  • Freezer Package
  • Back Up Alarm

Other options

  • Parking Brake, Dual, Manual
  • Hopper Screen
  • Oil Resistant Heavy Duty Hoses
  • Color Swap - Red to Granite
  • Drain Hose Extension 20'
  • Drain Hose Extension 20'

Heavy duty

  • Metal Recovery Lidfor XL Tank
  • Hand Guards

Stainless steel

  • Stainless Frame & Undercoated Package

Squeegee size

  • 45" + Squeegee - Standard on 32D,34D, 33C & 32R

Brushes — 32" disk

  • Set of 2 - 16" Pad Driver 8-Lobe Green
  • Set of 2 - 16" Nylon 8-Lobe Green
  • Set of 2 - 16" Light-Grit 8-Lobe Green
  • Set of 2 - 16" Midi-Grit 8-Lobe Green
  • Set of 2 - 16" Tough Grit 8-Lobe Green

Options are factory-installed at order time. Ask for a quote with the options you want.
