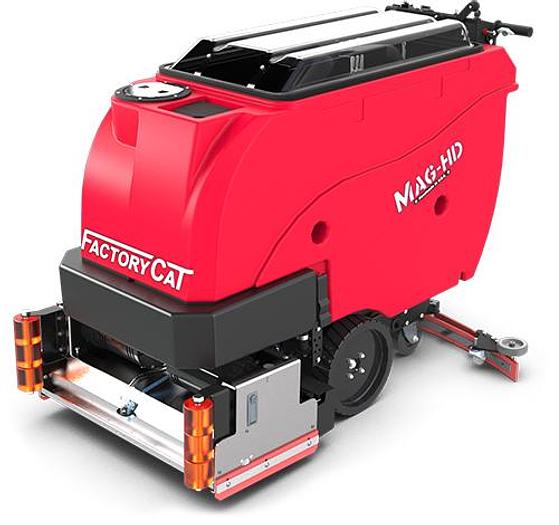

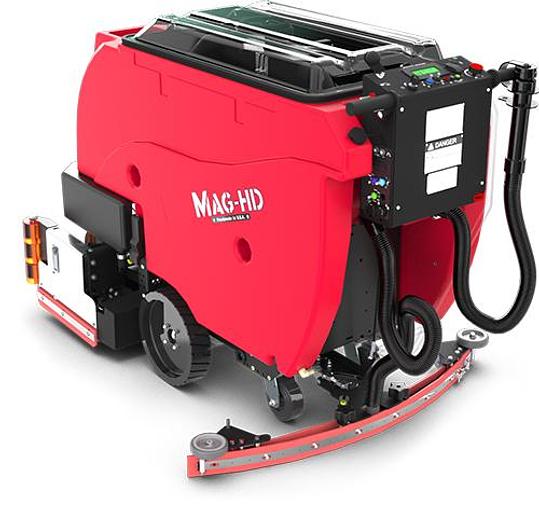

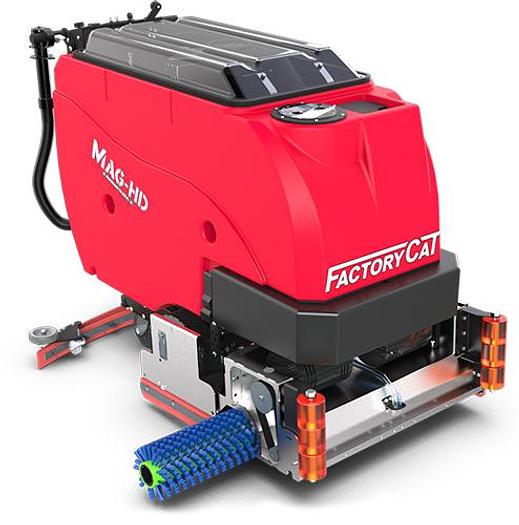

Factory Cat Mag-HD Floor Scrubber (29" Cylindrical)
Model MAGHD-29FC · Stock 264V2-29FC
Description
The Factory Cat Mag-HD 29” cylindrical is the largest Factory Cat walk-behind with dual cylindrical brushes, for textured floors over a five-hour shift. Best for: mid-size to large spaces from about 15,000 to 40,000 sq ft: warehouses, production floors, and shops with grit and chips underfoot. Textured and grouted hard floors, rough concrete, and epoxy.
- 29” cylindrical deck, dual 1 hp at 750 rpm, up to 500 lb down pressure
- Scrubs and picks up light debris in one pass, no pre-sweep
- Traction drive, so the operator steers rather than pushes
- 35 gal solution / 37 gal recovery tanks, up to 5 hours per charge
- 33,932 sq ft/hr theoretical coverage
Standard build includes four 6 V / 310 Ah wet batteries (24 V system), an onboard 24 V / 33 A charger, and a stainless-steel squeegee.

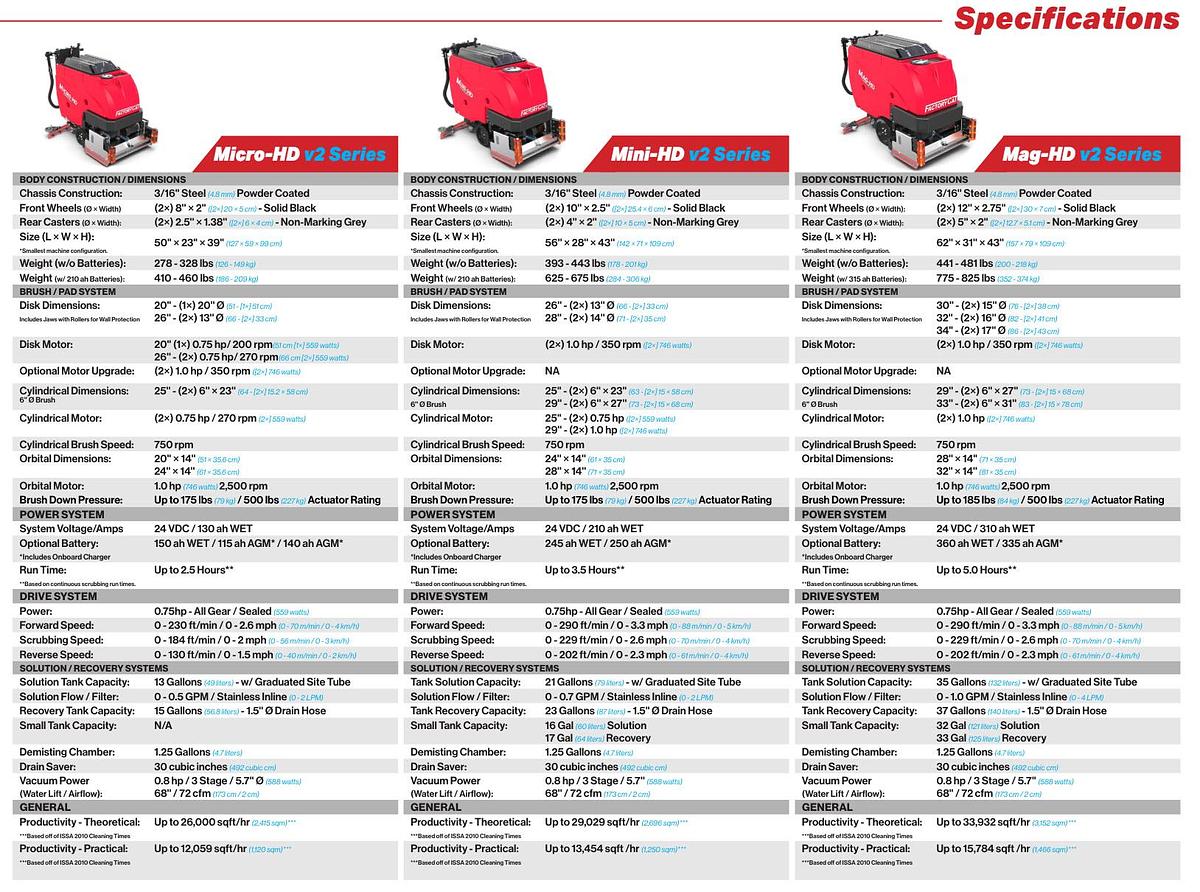

Specifications
| Type | Walk-behind |
|---|---|
| Cleaning path | 29" |
| Brush | Cylindrical |
| Power | 24 V battery (310 Ah, wet) |
| Run time | up to 5 hr |
| Tanks (solution / recovery) | 35 / 37 gal |
| Productivity | 33,932 sq ft/hr |
| Drive | Traction drive |
| Brush pressure | up to 500 lb |
| Brush speed | 750 rpm |
| Weight | 775–825 lb |
What's included
- Choice of controller and scrub brush
- All steel 3/16" / 4.7 mm / 6 ga powder coated frame supports weight of machine
- 35 gal / 133 L poly solution tank with "Site Tube" level gauge and integrated drain hose
- 37 gal / 140 L poly recovery tank with 1.5" / 38 mm diameter drain hose with flow control
- Cylindrical deck: Dual 1.0 HP motors / 750 RPM brush speed
- Patented Bandeau for noise reduction and vacuum protection
- (4) 6 V / 310 Ah wet batteries — 24 V system
- Onboard 24 V / 33 A charger
- Drain Saver system
- Stainless-steel squeegee
- Stainless fasteners
- 41" squeegee
Available options
Controller
- Nidec Membrane w/ Plain LCD
- Nidec Touch Screen Black
- Military Red
Batteries — lead acid (wet)
- Battery Upgrade WET 360ah
Batteries — AGM (maintenance-free)
- Battery Upgrade AGM 335ah
Batteries — lithium
- 130ah Lithium Battery Package (Qty 2) + Onboard Charger 24V/37A (Requires Custom Program Charger + Controller)
- 260ah Lithium Battery Package (Qty 4) + Onboard Charger 24V/37A (Requires Custom Program Charger + Controller)
Chargers
- Charger, Universal, Onboard, AGM 24V/37A, w/Inhibit, CE & CEC
Single-point watering systems
- Single Point Watering System w/ Indicator Light Hand Pump
Tank configuration
- Spec Ops Package
Cleaning, sanitizing and disinfecting
- O3+ Package: Aqueous Ozone & Chemical Dilution
- Suds Onboard Chemical Dilutionwith case of soap samples
- Sanitation Package
- ZerO3 Onboard Aqueous Ozone Package
Cleaning, sanitizing and disinfecting accessories
- Green Antimicrobial Tanks 31 Gal Sol / 33 Gal Rec
- 3 gal Remote Tank w/ Green High-Pressure Hose, Spray Gun w/3 Tips, 100PSI
- Vacuum Filter 0.2 Micron
- Blue Garden Hose w/ Spray Nozzle, 45PSI
- Green High-Pressure Hose, Spray Gun w/3 Tips, 100PSI
- Vacuum Wand
- Vac/Brush Flip Wand w/ Spray Jet 2 boxes
Wheels, tires and casters
- Casters, Rear, Soft Grey Non-Marking
- Tires, Drive, Solid Grey Non-Marking
- Tires, Drive, Pnumatic, Black
- Tire, Drive, Solid Black, Metal Hub
- Tire, Drive, Solid Grey, Metal Hub
Electrical
- Auto Squeegee Lift
- Tape Switch Drive includes E-Stop
- Freezer Package
- Back Up Alarm
Other options
- Parking Brake, Dual, Manual
- Hopper Screen
- Oil Resistant Heavy Duty Hoses
- Color Swap - Red to Granite
- Drain Hose Extension 20'
- Drain Hose Extension 20'
Heavy duty
- Metal Recovery Lidfor XL Tank
- Hand Guards
Stainless steel
- Stainless Frame & Undercoated Package
Squeegee size
- 41" + Squeegee - Standard on 30D, 29C & 28R
Brushes — 29" cylindrical
- Nylon Cylindrical 29" 8-Spline Green
- Light-Grit Cylindrical 29" 8-Spline Green
- Midi-Grit Cylindrical 29" 8-Spline Green
- Tough-Grit Cylindrical 29" 8-Spline Green
- Tampico Cylindrical 29" 8-Spline Green
Options are factory-installed at order time. Ask for a quote with the options you want.
